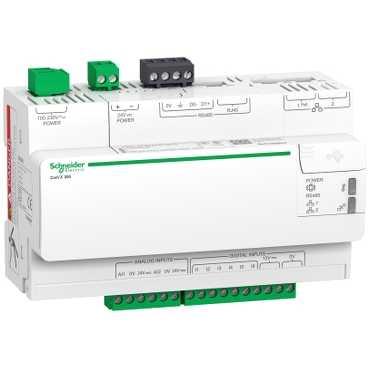

ETHERNET DATA LOGGER
| Varenr: | EBX200 |
| El nr: | 3398516106 |
| EAN13 nr: | 3606480578991 |
| Pakning: | 1stk |
 |
| [Us] rated supply voltage | Main supply: 100...230 V - AC at 50/60 Hz Main or redundant power supply: 24 V - DC |
| Ambient air temperature for operation | -25...60 °C |
| Ambient air temperature for storage | -40...85 °C |
| Analogue input type | 0...10 V Pt 100 Pt 1000 0...20 mA |
| Communication network type | 1 RJ45: Ethernet 1 RJ45: Ethernet, PoE+ (Power over Ethernet) RS485, Modbus serial |
| Depth | 65.8 mm |
| Device short name | ComX 200 |
| Discrete input current | 60 mA at 12 V DC |
| Height | 91 mm |
| IP degree of protection | Front face: IP40 Terminal block: IP20 |
| Local signalling | LED indicator: for I/O LED indicator: for communication (WiFi) LED indicator: for communication (Ethernet) LED indicator: for communication (Modbus) LED indicator: for status (GPRS) LED indicator: for power supply |
| Memory capacity | 256 MB flash 128 MB RAM |
| Mounting mode | Clip-on |
| Mounting support | 35 mm DIN rail |
| Number of inputs | 2 analog 6 digital |
| Operating altitude | 2000 m |
| Pollution degree | 3 |
| Power consumption in W | 26 W maximum |
| Product certifications | CE C-Tick CUL UL |
| Product or component type | Energy server |
| Product weight | 450 g |
| Range of product | Energy server |
| Relative humidity | 5...95 % at 55 °C without condensation |
| Sensor power supply | 24 V DC, 50 mA |
| Standards | CULus 508 EN 60950 UL 508 CSA C22.2 |
| Width | 144 mm |
