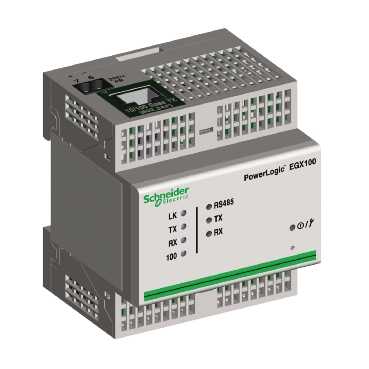

Gateway Ethernet-Modbus
| Varenr: | EGX100MG |
| El nr: | 3398990159 |
| EAN13 nr: | 3303431001491 |
| Pakning: | 1stk |
 |
| [Us] rated supply voltage | 24 V DC |
| Accessory / separate part category | Ekstra dele Masterpact NW Ekstra dele Masterpact NT |
| Ambient air temperature for operation | -25...70 °C |
| Antal porte | 1 |
| Bredde | 91 mm |
| Distributed supply voltage | PoE power supply 3 |
| Dybde | 68 mm |
| Electromagnetisk kompatibilitet | Surges conforming to EN 61000-4-5 Radiated RF fields conforming to EN 61000-4-3 Magnetic field at power frequency conforming to EN 61000-4-8 Immunity for industrial environments conforming to EN 61000-6-2 Fast transients immunity test conforming to EN 610 |
| Enhedens forbindelse | Seriel port protocol: effektLogic (SY/MAX) interface: RS485 38400/57600 bauds Seriel port protocol: effektLogic (SY/MAX) interface: RS232 38400/57600 bauds Seriel port protocol: Modbus (RTU and ASCII) interface: RS485 38400/57600 bauds Seriel port protoco |
| Enhedens korte navn | EGX100 |
| Højde | 72 mm |
| Montagevejledning | DIN skinne |
| Range of product | PowerLogic EGX100 |
| Standarder | AS/NZS25 60950 EN 60950 IEC 60950 UL 508 UL 60950 CSA C22.2 No 60950 |
| Vægt | 0.17 kg |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
