| [In] rated current | 6 A |
| [Us] rated supply voltage | 24 V DC (power supply) |
| Ambient air temperature for storage | -20...60 °C conforming to IEC 60068-2-14 test Na -20...60 °C conforming to IEC 60068-2-2 test Bb -20...60 °C conforming to IEC 60068-2-2 test Ab |
| Ambient air temperature for operation | 0...45 °C, vertical installation when using Gigabit Ethernet with HDD storage device conforming to EN 61131-2 Ed.3 0...45 °C, vertical installation when using RAID option conforming to EN 61131-2 Ed.3 0...50 °C, vertical installation conforming to EN 6113 |
| Chipset type | Intel GM45 1066 MHz |
| Control type | Push-button, for reset ON/OFF push-button, for equipment ON and OFF |
| Data storage equipment | 500 GB enterprise hard disk |
| Depth | 136 mm |

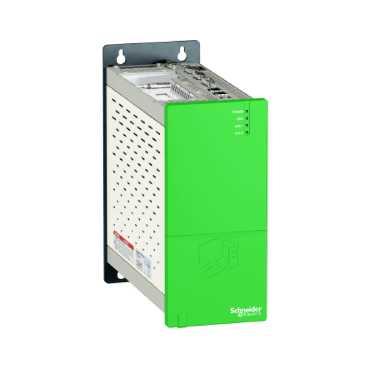

| Device short name | BOX PC Performance |
| Electromagnetic compatibility | Immunity to high frequency interference conforming to EN 61131-2 Ed.3 |
| Height | 270 mm |
| Inrush current | 7 A |
| Integrated connection type | COM3 serial link (optional) - 4X DVI-I video port (optional) COM3 serial link - male SUB-D 10 - RS232/422/485 - 115 kbauds 4 USB 2.0 port - USB type A - 480 Mbit/s top panel USB 2.0 port - USB type A - 480 Mbit/s front panel COM2 serial link - male SUB-D |
| IP degree of protection | IP20 |
| Local signalling | Yellow LED Multi-colour LED |
| Memory description | SDRAM (additional memory) 4 GB RAM DDR3 (internal) |
| Number of slots | 2 |
| Operating altitude | 2000 m conforming to EN 61131-2 Ed.3 |
| Operating system | Windows 7 64 bits Ultimate - multi-language |
| Pollution degree | 2 conforming to EN 61131-2 Ed.3 |
| Processor name | Core 2 Duo P8400 2.26 GHz - cache : 3 MB |
| Product certifications | CE C-Tick CULus GOST ATEX Zone 22 dust |
| Product or component type | Operator dialogue terminal |
| Product weight | 2.8 kg |
| Range compatibility | Magelis iDisplay |
| Range of product | Magelis iPC |
| REACh | Reference not containing SVHC above the threshold |
| Relative humidity | 10...85 % conforming to IEC 60068-2-30 test Db |
| RoHS (date code: YYWW) | Compliant - since 1115 - Schneider Electric declaration of conformity |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27, Ea tests |
| Software package | Vijeo Designer run time demo |
| Standards | UL 508 UL 1604 CSA C22.2 No 213 class I division 2 ANSI/ISA 12-12-01 CSA C22.2 No 142 |
| Supply voltage limits | 18...30 V |
| Sustainable offer status | Not Green Premium product |
| Type of cooling | Fan |
| Vibration resistance | 0.250 gn (f = 5...100 Hz) conforming to IEC 60068-2-6 (intermittently) 0.125 gn (f = 5...100 Hz) conforming to IEC 60068-2-6 (continuous) |
| Video controller type | Mobile Intel Graphics Media Accelerator (GMA) 4500MHD, 224 Mb |
| Width | 260 mm |
