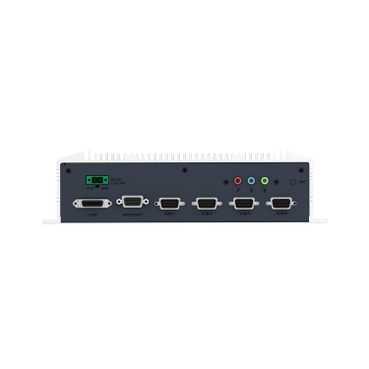

S-box pc universal 1,6Ghz, 4Go RAM, 1 internal SSD 80 GB, WES 7 Premium
| Varenr: | HMIBSUSND1W01 |
| El nr: | 7586051262 |
| EAN13 nr: | 3606480684371 |
| Pakning: | 1stk |
 |
| [In] rated current | 1.5 A |
| [Us] rated supply voltage | 24 V DC (power supply) |
| Ambient air temperature for operation | 0...50 °C conforming to EN/IEC 60068-2-2 |
| Ambient air temperature for storage | -40...85 °C conforming to IEC 60068-2-14 -40...85 °C conforming to IEC 60068-2-2 |
| Data storage equipment | Flash disk SSD 80 GB MLC 2000000 h |
| Depth | 133 mm |
| Device short name | S-BOX PC Universal |
| Directives | 2004/108/EC - electromagnetic compatibility 2006/95/EC - low voltage directive |
| Display resolution | 1920 x 1200 pixels |
| Electromagnetic compatibility | Electromagnetic emission conforming to EN 55022 class A Electromagnetic emission conforming to EN 55011 class A Immunity to high frequency interference conforming to IEC 61000-4 |
| Height | 68.4 mm |
| Input/output number | 8 configurable by software digital |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Memory description | Internal RAM DDR3 4 GB |
| Number of slots | 1 |
| Operating altitude | 2000 m conforming to IEC 60664-1 |
| Operating system | Windows Embedded Premium 7 32 bits |
| Power consumption | 16 W |
| Integrated connection type | 1 HDMI 1 audio output 4 COM1 serial link - male SUB-D 9 - RS232/422/485 1 Mini PCIe full-size 5 USB 2.0 port 3 Ethernet - 10/100/1000 Mbps 1 VGA 2 COM1 serial link - male SUB-D 9 - RS232 |
| Processor name | Atom N2600 dual core 1.6 GHz |
| Product certifications | GOST CCC CSA C22-2 UL |
| Product or component type | PC BOX |
| Product weight | 2.5 kg |
| Range compatibility | IDisplay |
| Range of product | Magelis iPC |
| Relative humidity | 10...85 % conforming to EN/IEC 60068-2-30 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Software package | Vijeo Designer run time demo Vijeo XD run time Vijeo Designer software 6.2 |
| Standards | CE EN 55011 class A group 1 EN 61000-6-4 FCC Part 15 EN 61131-2 Ed.3 |
| Supply voltage limits | 12...24 V |
| Type of cooling | Fanless |
| Vibration resistance | 0.5 gn (f = 9...200 Hz) conforming to IEC 60068-2-6 1.75 mm (f = 2...9 Hz) conforming to IEC 60068-2-6 |
| Watchdog timer | 1...255 ms |
| Width | 264.5 mm |
