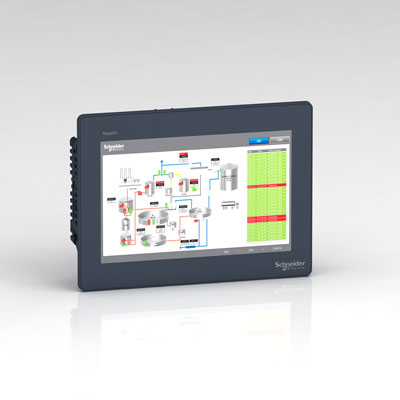

10 tommer wide screen avanceret Display WVGA

Varenr:	HMIDT551
El nr:	7586048725
EAN13 nr:	3606480687273
Pakning:	0stk


[Us] rated supply voltage	12...24 V DC power supply
Ambient air temperature for operation	0...60 °C
Ambient air temperature for storage	-20...60 °C
Backlight lifespan	50000 hours
Cut-out dimensions	190 (+ 1/- 0) x 135 (+ 1/- 0) mm
Depth	67 mm
Display colour	262144 colors
Display resolution	1280 x 800 pixels WVGA
Display size	10.1 inch
Display type	Colour TFT LCD
Electromagnetic compatibility	Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 level 3
Height	198.5 mm
Inrush current	30 A
IP degree of protection	IP67 (front panel) IP66 (front panel)
NEMA degree of protection	NEMA 4X (front panel)
Operating altitude	2000 m
Pollution degree	2
Power consumption	6.5 W
Product certifications	CE CULus RCM KC
Product end of life instructions	Available Download End of life manual
Product environmental profile	Available Download Product environmental
Product or component type	Advanced touchscreen panel
Product weight	2.5 kg
Range of product	Magelis GTU
REACh	Reference not containing SVHC above the threshold
Relative humidity	10...90 % (non-condensing)
RoHS (date code: YYWW)	Compliant - since 1347 - Schneider Electric declaration of conformity
Shock resistance	147 m/s² conforming to EN/IEC 61131-2
Standards	IEC 61132-2 CSA C22.2 No 142 CSA C22.2 No 213 class I division 2 ANSI/ISA 12-12-01 UL 508
Supply voltage limits	10.8...28.8 V
Sustainable offer status	Green Premium product
Terminal type	Touchscreen display
Touch panel	Single touch analogue resistive
Type of cooling	Natural convection
Type of installation	Indoor installation
Vibration resistance	9.8 m/s² (f = 9...150 Hz) conforming to EN/IEC 61131-2 3.5 mm constant amplitude (f = 5...9 Hz) conforming to EN/IEC 61131-2
Width	268.5 mm

Yderliger oplysninger: Se venligst SE katalog
