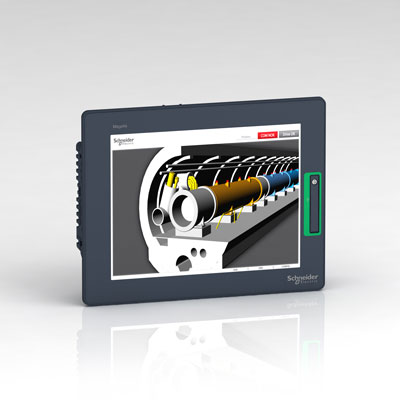

12,1 tommer screen Smart Display VGA

Varenr:	HMIDT642
El nr:	7586048738
EAN13 nr:	3606480687242
Pakning:	0stk


[Us] rated supply voltage	12...24 V DC power supply
Ambient air temperature for operation	0...60 °C
Ambient air temperature for storage	-20...60 °C
Backlight lifespan	50000 hours
Cut-out dimensions	301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm
Depth	67 mm
Display colour	16 million colours
Display resolution	1024 x 768 pixels XGA
Display size	12.1 inch
Display type	Colour TFT LCD
Electromagnetic compatibility	Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 level 3
Function available	Brightness sensor
Height	241 mm
Inrush current	30 A
Integrated connection type	USB 2.0 type A USB 2.0 type mini B
IP degree of protection	IP67 (front panel) IP66 (front panel)
NEMA degree of protection	NEMA 4X (front panel)
Operating altitude	2000 m
Pollution degree	2
Power consumption	21 W
Product certifications	CE CULus RCM KC
Product end of life instructions	Available Download End of life manual
Product environmental profile	Available Download Product environmental
Product or component type	Flat screen
Product weight	3 kg
Range of product	Magelis GTU
REACh	Reference not containing SVHC above the threshold
Relative humidity	10...90 % (non-condensing)
RoHS (date code: YYWW)	Compliant - since 1347 - Schneider Electric declaration of conformity
Shock resistance	147 m/s² conforming to EN/IEC 61131-2
Standards	IEC 61132-2 CSA C22.2 No 142 CSA C22.2 No 213 class I division 2 ANSI/ISA 12-12-01 UL 508
Supply voltage limits	10.8...28.8 V
Sustainable offer status	Green Premium product
Terminal type	Touchscreen display
Touch panel	Multi touch analogue resistive
Type of cooling	Natural convection
Type of installation	Indoor installation
Vibration resistance	9.8 m/s² (f = 9...150 Hz) conforming to EN/IEC 61131-2 3.5 mm constant amplitude (f = 5...9 Hz) conforming to EN/IEC 61131-2
Width	315 mm

Yderliger oplysninger: Se venligst SE katalog
