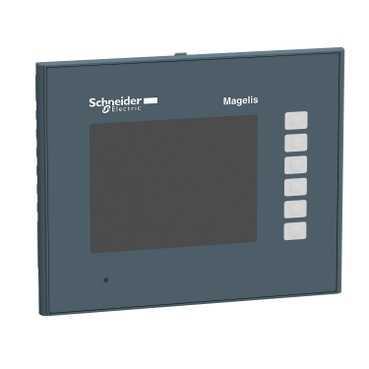

| [Us] rated supply voltage | 24 V DC |
| Ambient air temperature for operation | 0...50 °C |
| Ambient air temperature for storage | -20...60 °C |
| Backlight lifespan | 50000 hours (white) at 25 °C |
| Battery type | Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 d, battery life = 10 yr |
| Brightness | 16 levels - control by software 16 levels - control by touch panel |
| Character font | ASCII (European characters) Chinese (simplified Chinese) Japanese (ANK, Kanji) Korean Taiwanese (traditional Chinese) |
| Control button type | Push-button, key type , marking: F1...F6, number of function keys = 6 (operation defined using Vijeo Designer) |
| Data backed up | 512 kB internal RAM (SRAM) |
| Data storage equipment | SDHC card <= 32 GB SD card <= 32 GB |
| Depth | 42 mm |
| Display colour | 65536 colours |
| Display resolution | 320 x 240 pixels QVGA |
| Display size | 3.5 inch |
| Display type | Backlit colour TFT LCD |
| Downloadable protocols | Modbus TCP Schneider Electric Modicon Third party protocols Siemens Simatic Third party protocols Rockwell Automation Allen-Bradley Third party protocols Omron Sysmac Third party protocols Mitsubishi Melsec FIPWAY Schneider Electric Modicon Modbus Plus Sc |
| Enclosure material | PPT |
| Fixing mode | By 4 screw clamps |
| Front material | PPT |
| Height | 106 mm |
| Inrush current | <= 30 A |
| IP degree of protection | IP65 front panel conforming to IEC 60529 IP20 rear panel conforming to IEC 60529 |
| Memory description | 96 MB flash (EPROM) |
| Integrated connection type | Ethernet RJ45, interface: IEEE 802.3 Ethernet RJ45, interface: 10BASE-T/100BASE-TX COM1 serial link RJ45, interface: RS232C/RS485, transmission rate: 187.5 kbps compatible with Siemens MPI COM1 serial link RJ45, interface: RS232C/RS485, transmission rate: |
| Local signalling | Status LED (clear) faded power supply (OFF) Status LED (red) steady power supply (ON) Status LED (orange) flashing software starting up Status LED (green) steady operating Status LED (green) steady offline |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Operating altitude | < 2000 m |
| Power consumption in W | <= 9.6 W <= 4.3 W (when backlight is dimmed) <= 4.2 W (when backlight is OFF) <= 5.2 W (when power is not supplied to external devices) |
| Product certifications | CE C-Tick CULus KCC |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |
| Product mounting | Flush mounting |
| Product or component type | Advanced touchscreen panel |
| Product weight | 0.4 kg |
| Range of product | Magelis GTO |
| REACh | Reference not containing SVHC above the threshold |
| Relative humidity | 10...90 % without condensation |
| Resistance to electrostatic discharge | 6 kV contact discharge conforming to IEC 61000-4-2 level 3 |
| RoHS (date code: YYWW) | Compliant - since 1348 - Schneider Electric declaration of conformity |
| Shock resistance | 147 m/s² 3 chocks in each direction X, Y and Z conforming to EN/IEC 61131-2 |
| Software designation | Vijeo Designer configuration software >= V6.1 |
| Standards | EN 61131-2 IEC 61000-6-2 UL 508 |
| Supply | External source |
| Supply voltage limits | 19.2...28.8 V |
| Sustainable offer status | Green Premium product |
| Terminal type | Touchscreen display |
| Touch panel | Resistive film, 1000000 cycles |
| Touch sensitive zone | 1024 x 1024 |
| Type of cooling | Natural convection |
| Vibration resistance | 1 gn (f = 9...150 Hz) conforming to EN/IEC 61131-2 X, Y, Z directions for 10 cycles (approx. 100 min) 3.5 mm (f = 5...9 Hz) conforming to EN/IEC 61131-2 X, Y, Z directions for 10 cycles (approx. 100 min) |
| Width | 132 mm |
