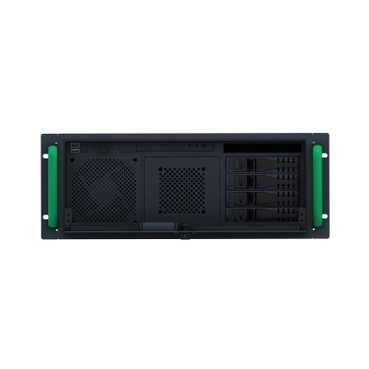

Rack pc 4u perf, hdd ac 6 slots server Win. Server, 3.1Ghz, 8Go RAM ECC, Raid HDD 500Go enterprise
| Varenr: | HMIRSPSXR6S01 |
| El nr: | 7586051327 |
| EAN13 nr: | 3606480684340 |
| Pakning: | 1stk |
 |
| [Us] rated supply voltage | 240 V AC (power supply) |
| Ambient air temperature for operation | 0...40 °C conforming to IEC 60068-2-2 |
| Ambient air temperature for storage | -20...60 °C conforming to IEC 60068-2-2 |
| Data storage equipment | 2 x enterprise RAID hard disk >= 500 GB in front tray hot swap |
| Depth | 600 mm |
| Device short name | Rack PC 4U Performance |
| Directives | 2004/108/EC - electromagnetic compatibility 2006/95/EC - low voltage directive |
| Display resolution | 2048 x 1536 pixels |
| Drive type | DVD-RW |
| Height | 177 mm |
| Integrated connection type | 4 USB 2.0 port 1 audio line output 1 audio micro input 2 Ethernet - 2 RJ45 - 10/100/1000 Mbps 1 COM1 serial link - male SUB-D 9 - RS232 4 PCI express slot 3 PCI slot 2 USB 3.0 port 1 DVI video port 1 VGA |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Memory description | Internal RAM DDR3 4 GB |
| Number of slots | 6 |
| Operating system | Windows Server 2008 |
| Power consumption | 500 W |
| Power supply type | Redundant |
| Processor name | Intel Xeon quad-core 1225 3.1 GHz - L3 cache : 8 MB |
| Product certifications | EAC CCC CSA C22-2 UL |
| Product or component type | Industrial rack PC |
| Product weight | 24.2 kg |
| Range compatibility | IDisplay |
| Range of product | Magelis iPC |
| Relative humidity | 10...85 % non-condensing conforming to IEC 60068-2-78 |
| Shock resistance | 10 gn for 11 ms conforming to IEC 60068-2-27 |
| Software package | Vijeo Designer run time demo Vijeo XD run time |
| Standards | CE EN 55011 class A group 1 EN 60950-1 EN 61000-6-2 EN 61000-6-4 FCC Part 15 |
| Type of cooling | Fan with speed control |
| Vibration resistance | 2 gn (f = 5...500 Hz) conforming to IEC 60068-2-6 (not operating) 0.002 g˛/Hz (f = 5...500 Hz) conforming to IEC 60068-2-64 (operating) |
| Video controller type | Intel HD Graphics 2500 |
| Watchdog timer | 1...255 ms |
| Width | 482 mm |
