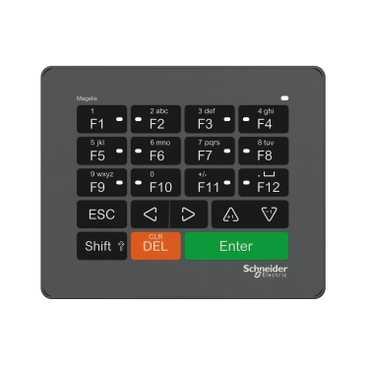

USB-tastatur - 12 funktioner- taster med integreret LED - alfanummerisk input
| Varenr: | HMIZKB1 |
| El nr: | 7586051576 |
| EAN13 nr: | 3595864174709 |
| Pakning: | 1stk |
 |
| [Us] rated supply voltage | 5 V DC, connector type: USB 2.0 |
| Ambient air temperature for operation | 0...55 °C |
| Ambient air temperature for storage | -20...60 °C |
| Colour of cover | Front dark grey cover |
| Connector type | Mini B USB |
| Depth | 31.5 mm |
| Device application | Food and beverage Industrial machines |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level 1 kV (signal ports) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level 2 kV (power ports) conforming to IEC 61000-4-4 Electrostatic discharge immunity test - te |
| Environmental characteristic | Corrosive gas free |
| Height | 80 mm |
| IP degree of protection | IP65 front panel (in enclosure) |
| Level or class | Class I Division 2 Groups A/B/C/D |
| Mounting location | Flat surface |
| NEMA degree of protection | NEMA 4X for enclosed outdoor NEMA 4X for indoor installation |
| Number of customisable keys | 12 with integrated LEDs |
| Number of key | 20 |
| Operating altitude | <= 2000 m |
| Pollution degree | 2 |
| Power consumption | 0.75 W |
| Product certifications | CE UL/cUL listed RCM EAC |
| Product compatibility | HMISTO HMISTU HMIGTO HMIGXO HMISCU |
| Product or component type | Keyboard |
| Product weight | 0.15 kg |
| Provided equipment | 1 replaceable label for function keys 1 fixing nut 1 USB type mini-B cable clamp 1 USB cable type A/mini-B of 1.8 m 1 anti-rotation tee 1 tightening wrench 1 user manual |
| Quantity per set | 1 piece |
| Range of product | Magelis HMIZ |
| Relative humidity | 10...90 % at 0...39 °C (non-condensing) |
| Shock resistance | 147 m/s˛ (3 chocks in each direction X, Y and Z) conforming to IEC 61131-2 |
| Software designation | Vijeo Designer version >= V6.2 |
| Standards | CSA C22.2 No 142 EN 61000-6-2 EN 61000-6-4 ROHS directive 2002/95/EC UL 508 EMC 2004/108/EC WEEE directive 2002/96/EC CSA C22.2 No 213 RoHS China SJ/T 11363-2006 ANSI/ISA 12.12.01 |
| Supply voltage limits | 4.75...5.25 V DC |
| Vibration resistance | 3.5 mm (f=5...9 Hz) conforming to IEC 61131-2 |
| Width | 97.6 mm |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
