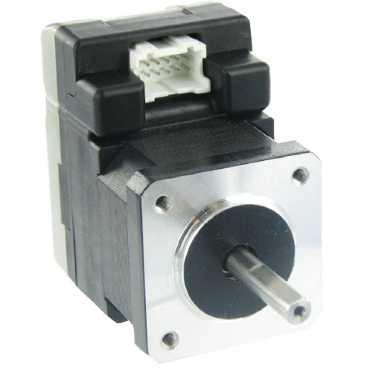

Lexium ILT - 2 faset stepmotor, 48VDC, puls/retning
| Varenr: | ILT2V361MN0A |
| El nr: | 7565801860 |
| EAN13 nr: | 3606480156793 |
| Pakning: | 1stk |
 |
| [Us] rated supply voltage | 24...48 V |
| Ambient air temperature for operation | 0...50 °C without derating > 50...65 °C with power derating of 2 % per °C |
| Ambient air temperature for storage | -25...70 °C |
| Beskyttelsestype | Overload of output voltage Short circuit of the output voltage |
| Communication interface | Pulse/Direction 5 -24 V |
| Driftshøjde | <= 1000 m without derating |
| Elektrisk tilslutning | Crimp connector |
| Enhedens korte navn | ILT |
| Feedback type | Without |
| Fejlnøjagtighed | +/- 0.3 arc/min |
| Forsyningsspændingsgrænser | 12...48 V |
| Gearkassetype | Uden |
| Holdebremse | Uden |
| Holding torque | 0.11 N.m |
| Ind- og udgangstype | 3 inputs (Step Clock, Direction, Enable) |
| IP kapslingsklasse | IP41 shaft bushing conforming to EN/IEC 60034-5 18-22 total except shaft bushing conforming to EN/IEC 60034-5 |
| Levetid i timer | 20000 h |
| Længde | 48.51 mm |
| Montagevejledning | Flange |
| Motor flange size | 36 mm |
| Motortype | 2-phase stepper motor |
| Mærkning | CE |
| Nominal speed | 900 rpm at 48 V 700 rpm at 24 V |
| Produkttype | Motion integrated drive |
| Range of product | Lexium integrated drive |
| Relativ fugtighed | 15...85 % without condensation |
| Rotor inertia | 0.017 kg.cm² |
| Speed feedback resolution | 800 steps 6400 steps 51200 steps 50000 steps 5000 steps 40000 steps 400 steps 3200 steps 25600 steps 25000 steps 20000 steps 2000 steps 200 steps 1600 steps 12800 steps 10000 steps 1000 steps |
| Spændingstilstand 1 garanteret | >= 2.2 V |
| Standarder | EMC immunity IEC 61000-4-2 EN 55011:2007, A2:2007 for Group 1, Class A EN 61000-3-2 : 2006 EN 61000-3-3:1995, A1:2001, A2:2005 IEC 61000-4-11 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 |
| Strømforbrug | 0.8 A (maximum continuous) |
| Største moment ved udfald | 0.11 N.m |
| Tilladelig omgivelsestemperatur omkring enheden | 100 °C |
| Type | DC |
| Vedblivende momentudfald | 0.11 N.m |
| Vægt | 0.15 kg |
| Winding type | Medium speed of rotation and medium torque |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
