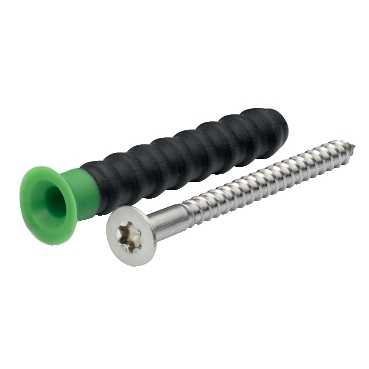

TPH-10X67 WSS GREPI-plug med skrue 74 mm 4
| Varenr: | IMT39081 |
| El nr: | 9121550906 |
| EAN13 nr: | 3606480302145 |
| Pakning: | 1stk |
 |
| Ambient air temperature for operation | -20...60 °C |
| Atmospheric-corrosivity category | C5-M |
| Colour tint | Green/black |
| Diameter | 10 mm |
| Drilling depth | >= 70 mm |
| Drilling diameter | 10 mm |
| EAN-Code | 3606480302145 |
| Enhedens korte navn | TPH |
| Forudsat udstyr | Screw |
| Local distributor code | 9121550906 |
| Længde | 67 mm |
| Material | Plug: PA + TPR Screw: acid-proof stainless steel |
| Produkttype | Plug |
| Quantity per set | Sæt af 4 |
| Range of product | Thorsman |
| Screw length | 72 mm |
| Stock Code | On stock |
| Tykkelse | <= 10 mm: fixture |
| Pratical load capacity | Shear: 1 kN til concrete C25 (sikkerhedsfaktor:2.5) Pull-out load: 0.8 kN til concrete C25 (sikkerhedsfaktor:3) Shear: 0.7 kN til low density concrete 500 and expanded clay (sikkerhedsfaktor:2.5) Pull-out load: 0.6 kN til low density concrete 500 and expa |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
