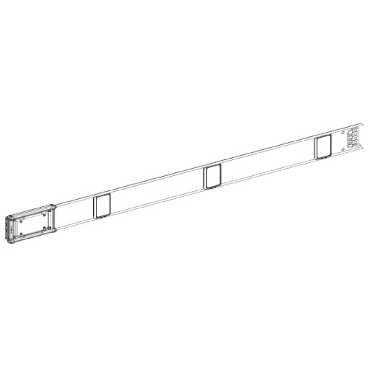

Kanalskinne 40-63A 4 udtag 2 meter

Varenr:	KNA63ED4204
El nr:	7514016169
EAN13 nr:	3606480003219
Pakning:	1stk


[Icw] rated short-time withstand current	1.05 kA
[Ie] rated operational current	63 A på 35 °C
[Ipk] rated peak withstand current	11 kA
[Ue] rated operational voltage	230...500 V
[Ui] rated insulation voltage	500 V
[Uimp] rated impulse withstand voltage	6 kV
Ambient air temperature for operation	55 °C 87 % af In 50 °C 91 % af In 45 °C 94 % af In 40 °C 97 % af In 35 °C 100 % af In
Antal kredse	1
Betjening	Uden
Bredde	92 mm
Busbar trunking polarity	3L + N + PE 3L + PEN
Device application	Low power distribution
Dybde	27.5 mm
EAN-nummer	3606480003219
Elektrisk tilslutning	Lubricated sliding contact
Farve	RAL 9001 : hvid
IK kapslingsklasse	IK08 i henhold til IEC 62262
IP kapslingsklasse	IP55 i henhold til IEC 60529
Kommerciel status	Commercialised
Lagerkode	På lager
Længde	2 m
Montage	By screws
Netfrekvens	50/60 Hz
Neutral position	Op
Number of tap-off outlets	4
Product end of life instructions	Need no specific recycling operations
Product environmental profile	Tilgængelig Download Produktmiljøprofil
Produktnavn	KN
Produktsortiment	Canalis
Produkttype	Busbar trunking
Radiated magnetic field	0.063 µT
REACh	Reference not containing SVHC above the threshold
RoHS (date code: YYWW)	Compliant - since 1012 - Schneider Electric declaration of conformity
Skinnebeskrivelse	Distribution length
Spændingsfald	0.16 V 0.7 50 Hz with 1A for 100 m long 0.179 V 0.8 50 Hz with 1A for 100 m long 0.196 V 0.9 50 Hz with 1A for 100 m long 0.208 V 1 50 Hz with 1A for 100 m long
Standarder	IEC 60439-2 IEC 61439-6
Sustainable offer status	Green Premium produkt
THDI	33...100 % 40 A 15...33 % 50 A 0...15 % 63 A
Thermal stress limit	1800 kA².s
Vægt	4.1 kg

Yderliger oplysninger: Se venligst SE katalog
