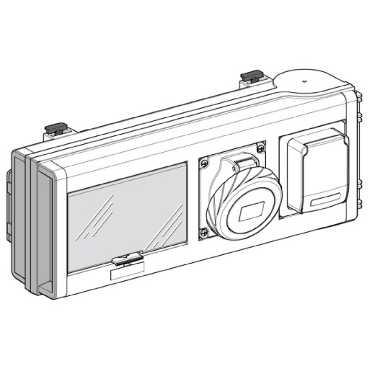

Afgangsboks 32 A med 16 A 5P+ 16 A 3 poler CEE stik
| Varenr: | KNB32CP35 |
| El nr: | 7514016415 |
| EAN13 nr: | 3606480006258 |
| Pakning: | 1stk |
 |
| [Ie] rated operational current | 32 A på 35 °C |
| [Ue] rated operational voltage | 230...500 V depending on protective device |
| [Ui] rated insulation voltage | 500 V depending on protective device 400 V depending on protective device |
| [Uimp] rated impulse withstand voltage | 6 kV |
| 18 mm pitches | 8 |
| Beskyttelsestype | Without protection |
| Bredde | 434 mm |
| Device application | Power socket distribution Low power distribution |
| Dybde | 141 mm |
| EAN-nummer | 3606480006258 |
| Earthing system | IT - afgangsstik enhed TN-S - afgangsstik enhed TT - afgangsstik enhed IT - busbar trunking TN-C - busbar trunking TN-S - busbar trunking TT - busbar trunking |
| Farve | Hvid : RAL 9001 |
| Højde | 165 mm |
| IK kapslingsklasse | IK08 i henhold til IEC 62262 |
| IP kapslingsklasse | IP55 i henhold til IEC 60529 |
| Kommerciel status | Commercialised |
| Kompatibilitet | Modulær enhed |
| Lagerkode | Ikke på lager |
| Medfølgende udstyr | Blanking plate |
| Netfrekvens | 50/60 Hz |
| Product end of life instructions | Need no specific recycling operations |
| Product environmental profile | Tilgængelig Download Produktmiljøprofil |
| Produktnavn | KN |
| Produktsortiment | Canalis |
| Produkttype | Afgangsstik enhed |
| REACh | Reference not containing SVHC above the threshold |
| RoHS (date code: YYWW) | Compliant - since 1012 - Schneider Electric declaration of conformity |
| Standarder | IEC 60439-2 IEC 61439-6 |
| Sustainable offer status | Green Premium produkt |
| Tap-off unit 2nd socket description | Industriel 16A 3P+N+T 415V |
| Tap-off unit connector type | Med fasevalg |
| Tap-off unit disconnection mode | By drawing out |
| Tap-off unit polarity | 3L+N+PE |
| Tap-off unit socket description | Industriel 16A 2P+T 230V |
| Vægt | 3.1 kg |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
