Fodskinne 1000 A 1 udtag 0,8m

Varenr:	KSA1000ED4081
El nr:	7514017485
EAN13 nr:	3606480003783
Pakning:	1stk


[Icw] rated short-time withstand current	37.4 kA
[Ie] rated operational current	1000 A 35 °C
[Ipk] rated peak withstand current	78.7 kA
[Ue] rated operational voltage	230...690 V
[Ui] rated insulation voltage	690 V
[Uimp] rated impulse withstand voltage	8 kV
Ambient air temperature for operation	55 °C 87 % af In 50 °C 91 % af In 45 °C 94 % af In 40 °C 97 % af In 35 °C 100 % af In

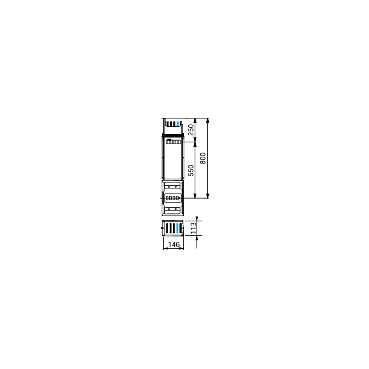

Bredde	146 mm
Busbar trunking polarity	3L + N + PE
Device application	Rise medium power distribution
Dimension type	Fix
Dybde	113 mm
EAN-nummer	3606480003783
Elektrisk tilslutning	Lubricated sliding contact
Farve	RAL 9001 : hvid
Højde	800 mm
IK kapslingsklasse	IK08 i henhold til IEC 62262
IP kapslingsklasse	IP55 i henhold til IEC 60529
Kommerciel status	Commercialised
Lagerkode	Ikke på lager
Material	Aluminium
Montage	By screws
Montagevejledning	Foot riser
Netfrekvens	50/60 Hz
Neutral position	Højre
Number of tap-off outlets	1
Product end of life instructions	Need no specific recycling operations
Product environmental profile	Tilgængelig Download Produktmiljøprofil
Produktnavn	KS
Produktsortiment	Canalis
Produkttype	Busbar trunking
Radiated magnetic field	1.21 µT
REACh	Reference not containing SVHC above the threshold
RoHS (date code: YYWW)	Compliant - since 1012 - Schneider Electric declaration of conformity
Skinnebeskrivelse	Riser foot
Spændingsfald	0.008 V 0.7 50 Hz with 1A for 100 m long 0.007 V 0.8 50 Hz with 1A for 100 m long 0.007 V 0.9 50 Hz with 1A for 100 m long 0.005 V 1 50 Hz with 1A for 100 m long
Standarder	IEC 60439-2 IEC 61439-6
Sustainable offer status	Green Premium produkt
THDI	33...100 % 630 A 15...33 % 800 A 0...15 % 1000 A
Thermal stress limit	1758 kA².s
Vægt	18.2 kg

Yderliger oplysninger: Se venligst SE katalog
