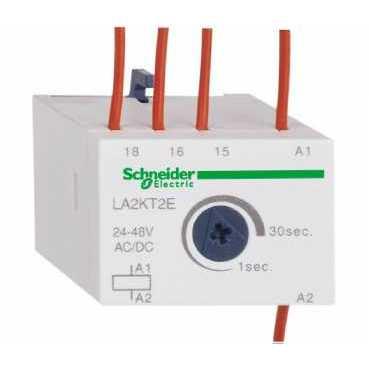

Tesys SK hjælpeblok 1CO 1-30s 24-48 V AC/DC
| Varenr: | LA2KT2E |
| El nr: | 7522027917 |
| EAN13 nr: | 3389110230048 |
| Pakning: | 1stk |
 |
| [Ith] conventional free air thermal current | 2 A |
| [Ue] rated operational voltage | 240 V DC for signalling circuit 240 V AC for signalling circuit 24...48 V DC for supply circuit 24...48 V AC for supply circuit |
| [Ue] rated operational voltage | 240 V DC til signalling circuit 240 V AC til signalling circuit 24...48 V DC til supply circuit 24...48 V AC til supply circuit |
| Ambient air temperature for operation | -10...60 °C |
| Anbefalede temperatur ved betjening | -10...60 °C |
| Beskyttelsesbehandling | TC i henhold til IEC 60068 |
| Bredde | 38 mm |
| Connections - terminals | Slip-on terminals |
| Depth | 38 mm |
| Device short name | LA1 |
| Dybde | 38 mm |
| EAN-nummer | 3389110230048 |
| Enhedens korte navn | LA1 |
| Environmental characteristic | Normal environment |
| Height | 27 mm |
| Højde | 27 mm |
| IP degree of protection | IP2x conforming to VDE 0106 |
| IP kapslingsklasse | IP2x i henhold til VDE 0106 |
| Kommerciel status | Commercialised |
| Lagerkode | Ikke på lager |
| Miljøbestemte kendetegn | Normal omgivelser |
| Montagested | Front |
| Mounting location | Front |
| Mærkespændingsgrænser | 0.85...1.1 Uc |
| Pole contact composition | 1 C/O |
| Product certifications | CSA UL |
| Product or component type | Time delay auxiliary contact block |
| Product weight | 0.04 kg |
| Productcertificeringer | CSA UL |
| Produkttype | Time delay auxiliary contact block |
| Protective treatment | TC conforming to IEC 60068 |
| Range | TeSys |
| Rated operational voltage limits | 0.85...1.1 Uc |
| Reset time | 1.5 ms |
| Resettid | 1.5 ms |
| Standarder | BS 5424 IEC 60947 NF C 63-110 VDE 0660 |
| Standards | BS 5424 IEC 60947 NF C 63-110 VDE 0660 |
| Tidsforsinkelsesområde | 1...30 s |
| Tilslutningsklemmer | Slip-on terminals |
| Time delay range | 1...30 s |
| Timer type | On delay |
| Timertype | On delay |
| Vægt | 0.04 kg |
| Width | 38 mm |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
