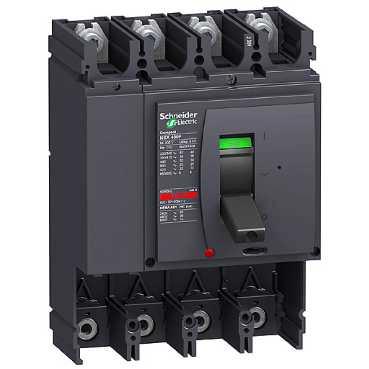

Maksimalafbryder NSX400N uden relæ 4 poler
| Varenr: | LV432408 |
| El nr: | 3322703969 |
| EAN13 nr: | 3606480006906 |
| Pakning: | 1stk |
 |
| [Ics] rated service breaking capacity | Ics 85 kA 220/240 V AC 50/60 Hz conforming to IEC 60947-2 Ics 50 kA 380/415 V AC 50/60 Hz conforming to IEC 60947-2 Ics 42 kA 440 V AC 50/60 Hz conforming to IEC 60947-2 Ics 30 kA 500 V AC 50/60 Hz conforming to IEC 60947-2 Ics 11 kA 525 V AC 50/60 Hz con |
| [In] rated current | 400 A ( 65 °C ) |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| Ambient air temperature for operation | -35...70 °C |
| Ambient air temperature for storage | -55...85 °C |
| Betjening | Drejegreb |
| Breaking capacity code | N |
| Bredde | 185 mm |
| Brydeevne | Icu 85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 Icu 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 Icu 42 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 Icu 30 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 Icu 22 kA at 525 V |
| Dybde | 110 mm |
| Egnet for adskillelse | Ja conforming to IEC 60947-2 Ja conforming to EN 60947-2 |
| Elektrisk holdbarhed | 6000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2 6000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2 3000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2 12000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2 |
| Enhedens korte navn | Compact NSX400N |
| Forureningsgrad | 3 conforming to IEC 60947-1 |
| Højde | 255 mm |
| IK kapslingsklasse | IK07 conforming to IEC 62262 |
| IP kapslingsklasse | 22-26 conforming to IEC 60529 |
| Mekanisk holdbarhed | 15000 cycles conforming to IEC 60947-2 |
| Montage | Fixed |
| Montagevejledning | Bagplade |
| Navn | Compact NSX400N |
| Netfrekvens | 50/60 Hz |
| Neutral position | Venstre |
| Polbeskrivelse | 4P |
| Productcertificeringer | CSA UL |
| Range of product | NSX400...630 |
| RoHS EUR conformity date(YYWW) | 0819 |
| RoHS EUR status | Compliant |
| Standarder | EN 60947-2 IEC 60947-2 Nema AB1 UL 508 |
| Tilslutning i bund | Front |
| Tilslutninger i top | Front |
| Tilslutningsafstand | 45 mm |
| Type | AC |
| Utilisation category | Category A |
Yderliger oplysninger:
