| [Icm] rated short-circuit making capacity | 7.1 kA switch-disconnector alone 330 kA with upstream protection circuit breaker |
| [Icw] rated short-time withstand current | 5 kA ( 3 s ) conforming to IEC 60947-3 5 kA ( 1 s ) conforming to IEC 60947-3 1.93 kA ( 20 s ) conforming to IEC 60947-3 |
| [Ie] rated operational current | AC-23A: 400 A AC 50/60 Hz 660/690 V AC-23A: 400 A AC 50/60 Hz 500/525 V AC-23A: 400 A AC 50/60 Hz 480 V NEMA AB1 AC-23A: 400 A AC 50/60 Hz 440/480 V AC-23A: 400 A AC 50/60 Hz 380/415 V AC-23A: 400 A AC 50/60 Hz 220/240 V AC-22A: 400 A AC 50/60 Hz 660/690 |
| [Ith] conventional free air thermal current | 400 A ( 60 °C ) |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-3 |
| Ambient air temperature for operation | -35...70 °C |
| Ambient air temperature for storage | -55...85 °C |
| Betjening | Drejegreb |
| Breaking capacity code | NA |
| Bredde | 185 mm |
| Contact position indicator | Ja |
| Dybde | 110 mm |
| Egnet for adskillelse | Ja conforming to IEC 60947-3 Ja conforming to EN 60947-3 |
| Electrical shock protection class | Klasse II |
| Elektrisk holdbarhed | AC-23A: 5000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-3 AC-23A: 5000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-3 AC-23A: 2500 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-3 AC-23A: 10000 cycles 440 V AC 50/60 Hz In/2 conformi |

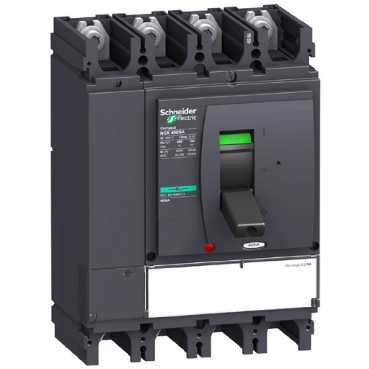

| Enhedens korte navn | Compact NSX400NA |
| Forureningsgrad | 3 conforming to IEC 60664-1 |
| Højde | 255 mm |
| IK kapslingsklasse | IK07 conforming to IEC 62262 |
| IP kapslingsklasse | 22-26 conforming to IEC 60529 |
| Lastadskillernavn | Compact NSX400NA |
| Mekanisk holdbarhed | 15000 cycles conforming to IEC 60947-3 |
| Montage | Fixed |
| Montagevejledning | Bagplade |
| Netfrekvens | 50/60 Hz |
| Polbeskrivelse | 4P |
| Productcertificeringer | CSA UL |
| Range of product | NSX400...630 |
| RoHS EUR conformity date(YYWW) | 0819 |
| RoHS EUR status | Compliant |
| Standarder | EN 60947-2 IEC 60947-2 Nema AB1 UL 508 |
| Synlig pause | No |
| Tilslutning i bund | Front |
| Tilslutninger i top | Front |
| Tilslutningsafstand | 45 mm |
| Type | AC DC |
| Vægt | 6.8 kg |
