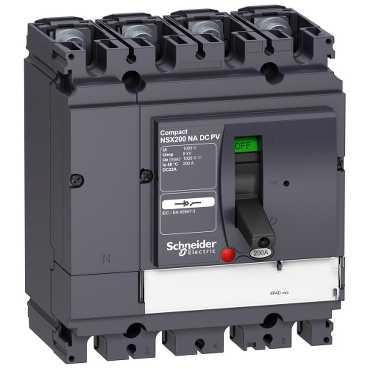

Lastadskiller DC-PV NSX200NA 4 poler 200A
| Varenr: | LV438250 |
| El nr: | 3322713263 |
| EAN13 nr: | 3606480483615 |
| Pakning: | 1stk |
 |
| [Icm] rated short-circuit making capacity | 2.5 kA switch-disconnector alone |
| [Icw] rated short-time withstand current | 2.5 kA ( 1 s ) conforming to IEC 60947-3 |
| [Ie] rated operational current | DC-22A : 200 A DC 1000 V |
| [Ith] conventional free air thermal current | 150 A ( 65 °C ) |
| [Ue] rated operational voltage | 1000 V DC conforming to IEC 60947-3 |
| [Ui] rated insulation voltage | 1000 V DC conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-3 |
| Breaking capacity code | NA |
| Connection pitch | 35 mm |
| Contact position indicator | Yes |
| Control type | Toggle |
| Depth | 186 mm |
| Device short name | Compact NSX200NA DC PV |
| Downside connection | Front |
| Electrical durability | 1500 cycles 1000 V DC In conforming to IEC 60947-3 |
| Height | 161 mm |
| IK degree of protection | IK07 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mechanical durability | 10000 cycles conforming to IEC 60947-3 |
| Mounting mode | Fixed |
| Network type | DC |
| Poles description | 4P |
| Pollution degree | 3 conforming to IEC 60947-3 |
| Product end of life instructions | Available |
| Product environmental profile | Available |
| Product name | NSX |
| Product or component type | Switch disconnector |
| Product weight | 2.8 kg |
| Range | Compact |
| REACh | Reference not containing SVHC above the threshold |
| RoHS (date code: YYWW) | Compliant - since 0819 - Schneider Electric declaration of conformity |
| Standards | IEC 60947-3 |
| Suitability for isolation | Yes conforming to IEC 60947-3 |
| Sustainable offer status | Green Premium product |
| Upside connection | Front |
| Utilisation category | DC-22A |
| Visible break | No |
| Width | 140 mm |
Yderliger oplysninger:
