| [Ics] rated service breaking capacity | Ics 50 kA 220/240 V AC 50/60 Hz conforming to IEC 60947-2 Ics 50 kA 240 V AC 50/60 Hz conforming to UL 508 Ics 50 kA 240 V AC 50/60 Hz conforming to NEMA AB1 HIC Ics 25 kA 480 V AC 50/60 Hz conforming to UL 508 Ics 20 kA 600 V AC 50/60 Hz conforming to NE |
| [In] rated current | 160 A ( 40 °C ) 150 A ( 65 °C ) |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 250 V DC conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -50...85 °C |
| Breaking capacity code | N |
| Circuit breaker application | Distribution |
| Connection pitch | 35 mm |
| Control type | Toggle |
| Depth | 86 mm |

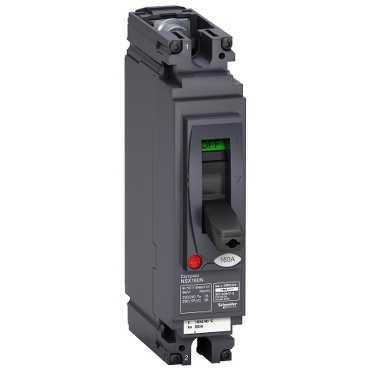

| Device short name | Compact NSX160N |
| Downside connection | Front |
| Electrical durability | 20000 cycles 277 V AC 50/60 Hz In/2 conforming to IEC 60947-2 10000 cycles 277 V AC 50/60 Hz In conforming to IEC 60947-2 |
| Breaking capacity | Icu 50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 240 V AC 50/60 Hz conforming to UL 508 50 kA at 240 V AC 50/60 Hz conforming to NEMA AB1 HIC 20 kA at 600 V AC 50/60 Hz conforming to NEMA AB1 HIC Icu 25 kA at 440 V AC 50/60 Hz conform |
| Height | 161 mm |
| IK degree of protection | IK07 conforming to EN 50102 |
| Instantaneous pick-up adjustment range | 1250 A |
| Instantaneous pick-up adjustment type Ii | Fixed |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Local signalling | Positive contact indication |
| Long time pick-up adjstment type Ir | Fixed |
| Long time pick-up adjustment range | 0.8...1 x In |
| Mechanical durability | 20000 cycles |
| Mounting mode | Fixed |
| Mounting support | Backplate |
| Network frequency | 50/60 Hz |
| Network type | AC DC |
| Poles description | 1P |
| Pollution degree | 3 conforming to IEC 60947 |
| Product certifications | ASEFA ASTA KEMA LCIE |
| Product or component type | Circuit breaker |
| Protected poles description | 1t |
| Protection type | Overload protection (thermal) Short-circuit protection (magnetic) |
| Range | Compact |
| REACh | Reference not containing SVHC above the threshold |
| RoHS (date code: YYWW) | Compliant - since 1221 - Schneider Electric declaration of conformity |
| Standards | IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Sustainable offer status | Not Green Premium product |
| Trip unit name | TM-D |
| Trip unit protection functions | LI |
| Trip unit rating | 160 A ( 40 °C ) |
| Trip unit technology | Thermal-magnetic |
| Upside connection | Front |
| Utilisation category | Category A |
| Width | 105 mm |
