| [Icw] rated short-time withstand current | 11.6 kA ( 3 s ) 5 kA ( 20 s ) 4 kA ( 30 s ) 20 kA ( 1 s ) |
| [Ie] rated operational current | DC-23A: 630 A DC 500 V 3 poles in series DC-23A: 630 A DC 250 V 2 poles in series DC-23A: 630 A DC 125 V 1 pole DC-22A: 630 A DC 500 V 3 poles in series DC-22A: 630 A DC 250 V 2 poles in series DC-22A: 630 A DC 125 V 1 pole AC-23A: 630 A AC 50/60 Hz 660/6 |
| [Ith] conventional free air thermal current | 630 A ( 40 °C ) power dissipation per fuse: 60 W lodrette 583 A ( 45 °C ) vertical 570 A ( 35 °C ) horizontal 558 A ( 50 °C ) vertical 549 A ( 40 °C ) horizontal 532 A ( 55 °C ) lodrette 528 A ( 45 °C ) horizontal 505 A ( 60 °C ) lodrette 505 A ( 50 °C ) |
| [Ithe] conventional enclosed thermal current | 630 A ( 40 °C ) / Power dissipation per fuse: 60 W 570 A ( 40 °C ) / Power dissipation per fuse: 50 W 800 mm x 1000 mm x 330 mm |
| [Ue] rated operational voltage | 750 V DC 690 V AC 50/60 Hz 1000 V DC DC-20 1000 V AC 50/60 Hz AC-20 |
| [Ui] rated insulation voltage | 1000 V DC 1000 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 12 kV |
| Anvendelse | Uafbrudt |
| Betjening | Operating shaft (without handle) |
| Bredde | 341 mm |
| Contact position indicator | Ja |
| Dybde | 233 mm |
| Egnet for adskillelse | Ja conforming to IEC 60947-1 |
| Elektrisk holdbarhed | AC-23A: 1000 cycles 690 V AC 50/60 Hz AC-23A: 1000 cycles 500 V AC 50/60 Hz AC-22A: 1000 cycles 690 V AC 50/60 Hz AC-22A: 1000 cycles 500 V AC 50/60 Hz |
| Forureningsgrad | 3 |
| Højde | 306 mm |
| IP kapslingsklasse | Fuse compartment: IP20 |
| Maximum power | AC-23: 630 kW 660/690 V AC 50/60 Hz AC-23: 450 KW 500/525 V AC 50/60 Hz AC-23: 355 KW 415 v AC 50/60 Hz AC-23: 355 kW 380/400 V AC 50/60 Hz AC-23: 200 KW 220/240 V AC 50/60 Hz |
| Mekanisk holdbarhed | 5000 cycles |
| Montage | Fixed |
| Montagested for drejehåndtag | Front |
| Montagevejledning | Montageplade |
| Netfrekvens | 50/60 Hz |
| Polbeskrivelse | 3P |
| Protected poles description | 3f |
| Range of product | INF200...800 |
| Rated making and breaking capacity | Icn 80 kA conforming to DIN 690 V with fuse Icn 80 kA conforming to DIN 415 v with fuse Icn 100 kA conforming to DIN 500 V with fuse Icm 83 kA 500 V without fuse Icm 77 kA 415 v without fuse Icm 55 kA 690 V without fuse Icm 220 kA conforming to DIN 500 V |

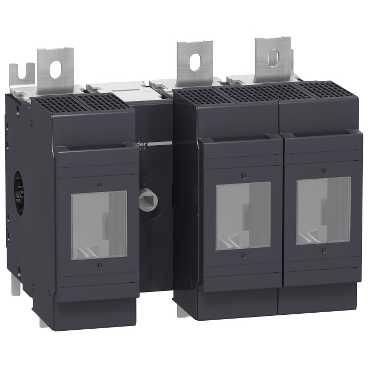

| Sikringsafbrydernavn | INFD630 |
| Sikringsstørrelse | NH3 |
| Sikringstype | DIN |
| Standarder | EN/IEC 60947-1 EN/IEC 60947-3 |
| Tilslutningsklemmer | Screw connection 630 A Screw connection 570 A |
| Tilspændingsmoment | Terminal: 50...75 N.m |
| Type | AC DC |
