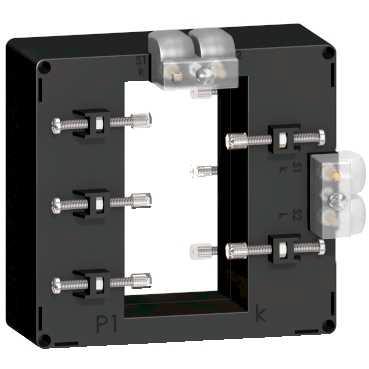

Strĝmtransformer 1000/5 dobbelt output til skinner 54x102
| Varenr: | METSECT5DE100 |
| El nr: | 7518302361 |
| EAN13 nr: | 3606480618901 |
| Pakning: | 1stk |
 |
| [In] rated current | 1000 A |
| [Ith] conventional free air thermal current | 60 kA |
| [Ue] rated operational voltage | < 720 V AC at 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Accuracy class | Class 1 maximum power: 15 VA Class 0.5 maximum power: 12 VA |
| Ambient air temperature for operation | -25...60 °C |
| Current transformer ratio | 1000/5 |
| Current transformer type | Tropicalised for busbar |
| Depth | 50 mm outside |
| Dynamic withstand current | 2.5 Ith |
| Electrical insulation class | Class B |
| Height | 103 mm inner 129 mm outside |
| IP degree of protection | IP20 |
| Mounting mode | Insulated locking screw |
| Mounting support | Busbar |
| Opening of bars | 102 x 54 |
| Product certifications | CE |
| Product end of life instructions | Need no specific recycling operations |
| Product environmental profile | Available |
| Product name | CT |
| Product or component type | Current transformer |
| Product weight | 0.642 kg |
| Range | PowerLogic |
| Relative humidity | < 95 % |
| Safety factor | <= 5 |
| Sealing | With |
| Secondary current | 5 A |
| Standards | VDE 0414 IEC 61869-2 |
| Sustainable offer status | Not Green Premium product |
| Width | 135 mm outside 55 mm inner |
Yderliger oplysninger:
