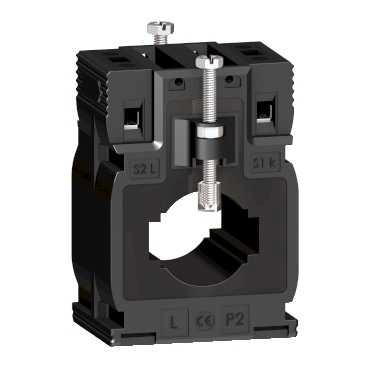

Strømtransformer DIN 400/5 kabler - skinner 10x32 15x25


[In] rated current	400 A
[Ith] conventional free air thermal current	24 kA
[Ue] rated operational voltage	< 720 V AC at 50/60 Hz
[Ui] rated insulation voltage	3 kV
[Uimp] rated impulse withstand voltage	3 kV
Accuracy class	Class 1 maximum power: 12 VA Class 0.5 maximum power: 10 VA
Ambient air temperature for operation	-25...60 °C
Cable outer diameter	27 mm max
Current transformer ratio	400/5
Current transformer type	Tropicalised for busbar and cable
Depth	43 mm outside
Diameter	27 mm
Dynamic withstand current	2.5 Ith
Electrical insulation class	Class B
Height	80 mm outside
IP degree of protection	IP20
Mounting mode	By screws Insulated locking screw Clip-on
Mounting support	Busbar DIN rail Mounting plate
Opening of bars	32.5 x 10.5 25.5 x 15.5
Product certifications	CE EAC
Product end of life instructions	Need no specific recycling operations
Product environmental profile	Available
Product name	CT
Product or component type	Current transformer
Product weight	0.328 kg
Range	PowerLogic
Relative humidity	< 95 %
Safety factor	<= 5
Sealing	Without
Secondary current	5 A
Standards	VDE 0414 IEC 61869-2
Sustainable offer status	Not Green Premium product
Width	56 mm outside

Yderliger oplysninger: Se venligst SE katalog
