| [In] rated current | 5 A |
| Accuracy class | Class 2 (reactive energy according to IEC 62053-23) Class 1 (active energy according to IEC 62053-21) Class 0.5S (active energy according to IEC 62053-22) |
| Ambient air temperature for operation | -25...55 °C |
| Ambient air temperature for storage | -40...85 °C |
| Analogue input type | Current 0...1 A Current 0...5 A |
| Communication port protocol | Modbus : 9.6...38.4 kbauds, |
| Communication port support | RS485 |
| Data recording | Min/max of instantaneous values Time stamping 5 alarms |
| Depth | 70 mm |
| Device application | Mains and feeder monitoring Sub billing Multi-tariff |

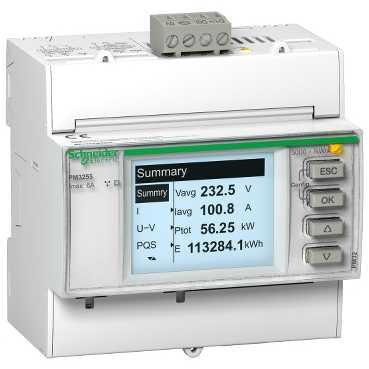

| Device short name | PM3250 |
| Display resolution | 128 x 96 pixels |
| Display type | Backlit LCD |
| Electromagnetic compatibility | ? conducted and radiated emissions class class B, conforming to EN 55022 ? magnetic field at power frequency (0.5 mT ), conforming to IEC 61000-4-8 ? conducted RF disturbances class level 3, conforming to IEC 61000-4-6 ? 1.2/50 µs shock waves immunity tes |
| Frequency measurement range | 45...65 Hz |
| Height | 95 mm |
| Information displayed | Tariff 4 |
| IP degree of protection | IP20 (body) conforming to IEC 60529 IP40 (front panel) conforming to IEC 60529 |
| Measurement accuracy | 0.3 % voltage (80...570 V) 0.3 % voltage (50...330 V) 0.5 % current (0.1...1.2 A) 0.3 % current (0.5...6 A) |
| Measurement current | 0.05...6 A 0.02...1.2 A |
| Measurement voltage | <= 1 MV AC 45...65 Hz with external VT 80...570 V AC 45...65 Hz phase to phase 80...570 V AC 45...65 Hz direct 50...330 V AC 45...65 Hz phase to neutral 50...330 V AC 45...65 Hz direct |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Network frequency | 50 Hz 60 Hz |
| Number of inputs | 0 |
| Number of outputs | 0 |
| Operating altitude | 0...3000 m |
| Overvoltage category | III |
| Pollution degree | 2 |
| Power consumption in VA | 5 VA |
| Power quality analysis | Up to the 15th harmonic |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available |
| Product name | PowerLogic PM3000 |
| Product or component type | Power meter |
| Product weight | 0.26 kg |
| Range | PowerLogic |
| REACh | Reference not containing SVHC above the threshold |
| Relative humidity | 5...95 % 50 °C |
| RoHS (date code: YYWW) | Compliant - since 1214 - Schneider Electric declaration of conformity |
| Sampling rate | 32 samples/cycle |
| Standards | EN 61010-1 IEC 61557-12 IEC 62052-11 EN 50470-1 EN 50470-3 EN 61557-12 UL 61010-1 |
| Supply voltage | 100...300 V DC 173...480 V AC (45...65 Hz) 100...277 V AC (45...65 Hz) |
| Sustainable offer status | Green Premium product |
| Type of measurement | Total voltage harmonic distortion THD (U) Total current harmonic distortion THD (I) Frequency Power factor Energy Voltage Current Apparent power Active and reactive power |
| Type of network | 1P + N 3P 3P + N |
| Width | 90 mm |
