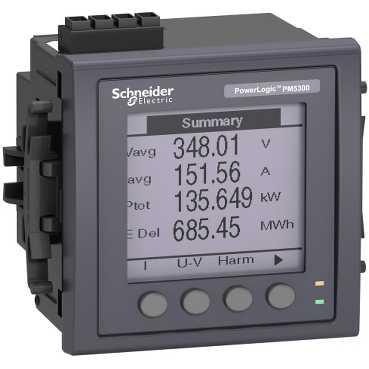

PM5320 strømmåler med ethernet, op til 31st H - 256K 2DI/2DO 35 alarmer
| Varenr: | METSEPM5320 |
| El nr: | 3398516177 |
| EAN13 nr: | null |
| Pakning: | 1stk |
 |
| [In] rated current | 5 A |
| Accuracy class | Class 0.5S (active energy according to IEC 62053-22) |
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -40...85 °C |
| Analogue input type | Voltage (impedance 5 MOhm) Current (impedance 0.3 mOhm) |
| Communication port protocol | Modbus TCP/IP : 10/100 Mbit/s, insulation: 2500 V |
| Communication port support | Ethernet |
| Data recording | Data logs Event logs Min/max of instantaneous values Time stamping Alarm logs Maintenance logs |
| Depth | 72 mm |
| Device application | Power monitoring Multi-tariff |
| Device short name | PM5320 |
| Display resolution | 128 x 128 |
| Display type | Backlit LCD |
| Electromagnetic compatibility | ? conducted and radiated emissions class class B, conforming to EN 55022 ? magnetic field at power frequency class level 4, conforming to IEC 61000-4-8 ? conducted RF disturbances class level 3, conforming to IEC 61000-4-6 ? electrostatic discharge class |
| Frequency measurement range | 45...65 Hz |
| Height | 96 mm |
| Information displayed | Tariff 4 |
| IP degree of protection | IP30 (body) conforming to IEC 60529 IP52 (front) conforming to IEC 60529 |
| Measurement accuracy | +/- 0.5 % voltage +/- 0.5 % current +/- 0.005 % power factor +/- 0.05 % frequency +/- 0.5 % apparent power +/- 0.5 % active power +/- 2 % reactive energy +/- 0.5 % active energy |
| Measurement current | 10 mA...9 A |
| Measurement voltage | 20...400 V AC 45...65 Hz between phase and neutral 35...690 V AC 45...65 Hz between phases |
| Memory capacity | 256 kB |
| Mounting mode | Flush-mounted |
| Mounting support | Framework |
| Network frequency | 50 Hz 60 Hz |
| Number of inputs | 2 digital |
| Number of outputs | 2 digital |
| Operating altitude | 2000 m |
| Pollution degree | 2 |
| Power consumption in VA | 10 VA at 415 V |
| Power quality analysis | Up to the 31st harmonic |
| Product certifications | CULus conforming to UL 61010-1 CE conforming to IEC 61010-1 |
| Product name | PowerLogic PM5000 |
| Product or component type | Power meter |
| Product weight | 430 g |
| Range | PowerLogic |
| Relative humidity | 5...95 % 50 °C |
| Sampling rate | 64 samples/cycle |
| Standards | IEC 60529 IEC 61557-12 IEC 62053-22 EN 50470-1 EN 50470-3 IEC 62053-24 |
| Supply voltage | 125...250 V DC 100...415 V AC (45...65 Hz) |
| Type of measurement | Active and reactive power Energy Power factor Frequency Voltage Current |
| Type of network | 3P 3P + N |
| Width | 96 mm |
Yderliger oplysninger:
