| [In] rated current | 5 A |
| Accuracy class | Class 0.2S (active energy according to IEC 62053-22) |
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -40...85 °C |
| Analogue input type | Voltage (impedance 5 MOhm) Current (impedance 0.3 mOhm) |
| Communication port protocol | Ethernet Modbus TCP/IP daisy chain Modbus TCP/IP : 10/100 Mbit/s, insulation: 2500 V JBUS Modbus RTU and ASCII 2 wires, : 9.6, 19.2 and 38.4 kbauds, even/odd or none, insulation: 2500 V |
| Communication port support | Ethernet RS485 |
| Data recording | Data logs Event logs Min/max of instantaneous values Time stamping Alarm logs Maintenance logs |
| Depth | 72 mm |
| Device application | WAGES metering Power monitoring Multi-tariff |
| Device short name | PM5560 |
| Display resolution | 128 x 128 |
| Display type | Backlit LCD |
| Frequency measurement range | 45...65 Hz |
| Height | 96 mm |
| Electromagnetic compatibility | ? voltage dips and interruptions immunity test, conforming to IEC 61000-4-11 ? surge immunity test class level 4, conforming to IEC 61000-4-5 ? electrical fast transient/burst immunity test class level 4, conforming to IEC 61000-4-4 ? radiated radio-frequ |
| Information displayed | Tariff 8 |
| IP degree of protection | IP30 (body) conforming to IEC 60529 IP52 (front) conforming to IEC 60529 |
| Measurement accuracy | +/- 0.15 °C current +/- 0.05 % power factor +/- 0.1 % voltage +/- 0.2 % active power +/- 1 % reactive energy +/- 0.2 % active energy +/- 0.05 % frequency +/- 0.5 % apparent power |
| Measurement current | 5 mA...10 A |
| Measurement voltage | 20...690 V AC 45...65 Hz between phases 20...400 V AC 45...65 Hz between phase and neutral |
| Memory capacity | 1.1 MB |
| Mounting mode | Flush-mounted |
| Mounting support | Framework |
| Network frequency | 50 Hz 60 Hz |
| Number of inputs | 4 digital |
| Number of outputs | 2 digital |
| Operating altitude | 3000 m |
| Pollution degree | 2 |
| Power consumption in VA | 10 VA at 480 V |
| Power quality analysis | Up to the 63rd harmonic |
| Product certifications | CULus conforming to UL 61010-1 CE conforming to IEC 61010-1 |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |

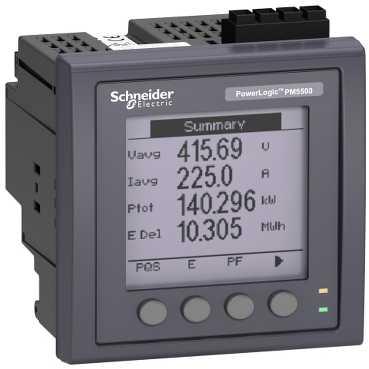

| Product name | PowerLogic PM5000 |
| Product or component type | Power meter |
| Product weight | 450 g |
| Range | PowerLogic |
| REACh | Reference not containing SVHC above the threshold |
| Relative humidity | 5...95 % 50 °C |
| RoHS (date code: YYWW) | Compliant - since 1340 - Schneider Electric declaration of conformity |
| Sampling rate | 128 samples/cycle |
| Standards | IEC 60529 IEC 61557-12 IEC 62053-22 EN 50470-1 EN 50470-3 IEC 62053-24 |
| Supply voltage | 100...480 V AC (45...65 Hz) 125...250 V DC |
| Sustainable offer status | Green Premium product |
| Type of measurement | Active and reactive power Energy Power factor Frequency Voltage Current |
| Type of network | 3P 3P + N |
| Web services | Web server |
| Width | 96 mm |
