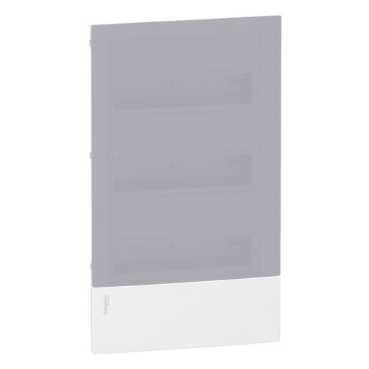

Afdækning MiniPragma planforsænket 3 rækker 12 moduler Klar
| Varenr: | MIP22312T |
| El nr: | 3316412279 |
| EAN13 nr: | 3606480148057 |
| Pakning: | 1stk |
 |
| [In] rated current | 63 A |
| Ambient air temperature for operation | -25...60 °C |
| Cable entry | Pre-cutted holes |
| Colour | Door: translucid Front face: white ( RAL 9003 ) |
| Depth | 80 mm wall 18 mm outside |
| Distribution block outgoers | 9 x 6 mm² for neutral 9 x 6 mm² for earth 9 x 10 mm² for neutral 9 x 10 mm² for earth 2 x 16 mm² for neutral 2 x 16 mm² for earth |
| Enclosure material | Front face: technoplastic Door: technoplastic Back part: technoplastic |
| Enclosure mounting | Flush |
| Enclosure type | Modular enclosure |
| Fire resistance | Front face: 650 °C Door: 650 °C Back part: 650 °C |
| Height | 502 mm outside 478 mm wall |
| IK degree of protection | IK07 |
| IP degree of protection | IP40 |
| Nb of 18 mm modules per row | 12 |
| Nb of horizontal rows | 3 |
| Number of terminal blocks | 1 neutral terminal block with 20 screwed outgoers 1 earth terminal block with 20 screwed outgoers |
| Period | 18 months |
| Product end of life instructions | Need no specific recycling operations |
| Product environmental profile | Available Download Product environmental |
| Product or component type | Enclosure |
| Quality labels | IMQ |
| Range of product | Mini Pragma |
| REACh | Reference not containing SVHC above the threshold |
| RoHS | Compliant - since 0901 - Schneider Electric declaration of conformity |
| Standards | EN 50102 IEC 529 IEC 60439-3 IEC 60670-24 IEC 60695-2-11 |
| Sustainable offer status | Green Premium product |
| Terminal block function | Earth / neutral |
| Total number of 18 mm modules | 36 |
| Type of door | Translucid |
| Type of rail | 35 mm asymmetrical rail |
| Width | 294 mm outside 270 mm wall |
Yderliger oplysninger:
