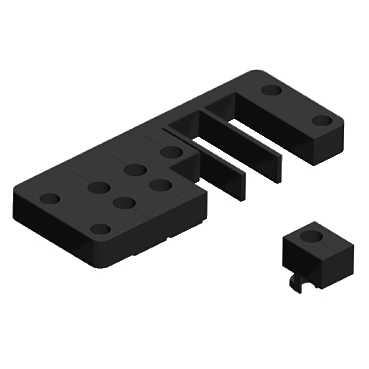

Flange til kabelindgang 16/8
| Varenr: | NSYDCE168 |
| El nr: | 7512432907 |
| EAN13 nr: | 3606480168635 |
| Pakning: | 1stk |
 |
| Accessory / separate part destination | Connector |
| Antal kabelindgang | 8 |
| Antal pr. Sæt | Sæt af 1 |
| Bredde | Fixing center : 130 mm Cut-out : 112 mm Real : 146 mm |
| Device application | Flere forslag |
| Dybde | Fixing centre : 32 mm Cut-out : 36 mm Real : 58 mm |
| EAN-nummer | 3606480168635 |
| Fastgørelse | By fixing element |
| Højde | Real : 14 mm |
| IP kapslingsklasse | IP54 |
| Kommerciel status | Commercialised |
| Lagerkode | Ikke på lager |
| Materiale | Polyamide |
| Montagevejledning | Cable gland plate Body of enclosure |
| Product end of life instructions | Need no specific recycling operations |
| Product environmental profile | Tilgængelig |
| Produktsortiment | Cable entries |
| Produkttype | Cable entry plate for connector |
| REACh | Reference not containing SVHC above the threshold |
| RoHS (date code: YYWW) | Compliant - since 0940 - Schneider Electric declaration of conformity |
| Sammensætning | 1 plate 1 fixing elements |
| Sustainable offer status | Green Premium produkt |
Yderliger oplysninger:
