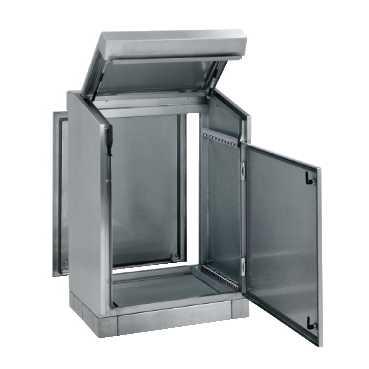

SDX-kontrolpult, rustfrit 304L, Scotch Brite® overflade H1000xB1200xD500 mm.
| Varenr: | NSYSDX12 |
| El nr: | 7512402924 |
| EAN13 nr: | 3606480155598 |
| Pakning: | 1stk |
 |
| Accessibility for operation | Front Rear |
| Body type | Single piece structure folded and welded |
| Category | Control desk |
| Device composition | 5 blanking cover ( on top of control desk ) 2 pneumatic stay ( desk lid ) 1 cable gland plate 4 adjustment rail 1 lock ( door ) 1 rear panel 2 door 1 structure |
| Door opening | 120 °, reversible |
| Door type | Plain |
| Enclosure type | Multi-purpose |
| Environmental characteristic | Corrosive Specific hygiene |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Lock type | 2 points lock, 3 mm double-bar |
| Material | Hinge : stainless steel Lock : zamak Structure, door and rear panel : stainless steel 304L |
| Mounting plate description | Without mounting plate |
| Nominal depth | 500 mm |
| Nominal height | 1000 mm |
| Nominal width | 800 mm |
| Number of doors | Front face : 2 door(s) |
| Product destination | Dialogue components |
| Product end of life instructions | Need no specific recycling operations |
| Product environmental profile | Available |
| Product installation | Floor-standing |
| Range | Spacial SDX |
| REACh | Reference not containing SVHC above the threshold |
| Removable parts | Cable gland plate fixing: by clips Rear panel fixing: by screws Door fixing: by hinges |
| RoHS (date code: YYWW) | Compliant - since 0940 - Schneider Electric declaration of conformity |
| Standards | IEC 62208 |
| Surface finish | Lock : chromium plated Structure, door and rear panel : Scotch-Brite® brushed |
| Sustainable offer status | Green Premium product |
| Thickness | 1.5 mm |
| Type of gland plate | Plain |
Yderliger oplysninger:
