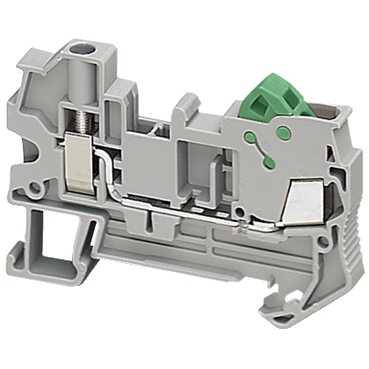

Hybridklemme 2,5 mm²
| Varenr: | NSYTRH22 |
| El nr: | 1512723544 |
| EAN13 nr: | 3606480533433 |
| Pakning: | 1stk |
 |
| [Ie] rated operational current | 22 A conforming to ATEX Exe II Ex II 2 GD 15 A CSA 15 A UL 24 A conforming to EN/IEC 60947-7-1 |
| [Ue] rated operational voltage | 550 V conforming to ATEX Exe II Ex II 2 GD 600 V CSA 600 V UL 800 V conforming to EN/IEC 60947-7-1 |
| Ambient air temperature for operation | -40...130 °C conforming to VDE 0304-T21 -40...130 °C conforming to IEC 60216-1 |
| Antal klemmer | 2 |
| Antal måleindgange | 2 |
| Bredde | 6.2 mm |
| Creep resistance | 500 CTI (> 400 kB) conforming to VDE 0303-T30 500 CTI (> 400 kB) conforming to IEC 60093 |
| Dielectric constant | 3,7 at 1 MHz |
| Dielektrisk gennemslagsholdbarhed | 1000 V conforming to IEC 60243-1 |
| Dielektrisk tab | 0,01 at 1 MHz conforming to VDE 0303-T4 0,01 at 1 MHz conforming to IEC 60250 |
| EAN-Code | 3606480533433 |
| Enhedens korte navn | TRH |
| Farve | Harmaa |
| Fastbindingslængde for ledning | 10 mm |
| Flammemodstand | V0, thickness0.8 mm conforming to UL 94 |
| Højde | 42.8 mm |
| Klemrækketype | Gennemstrømning |
| Kompatibilitet | Spacial enclosures |
| Ledertværsnit | Beskyttelse nedad: 0.5...2.5 mm², fleksibel Mod strømmen: 0.14...6 mm², solid Mod strømmen: 0.14...4 mm², fleksibel uden |
| Local distributor code | 1512723544 |
| Længde | 62.6 mm |
| Material | Polyamide 6/6 (insulating case) |
| Montage | Clip-on |
| Nominal cross section | 2.5 mm² |
| Overflademodstand | 1000 G? conforming to VDE 0303-T30 1000 G? conforming to IEC 60093 |
| Product name | TR |
| Productcertificeringer | ATEX CSA GOST UL IEC-Ex |
| Produkttype | Terminal blok |
| Quantity per set | Sæt af 50 |
| Range | Linergy |
| Reguleringskompatibilitet | TeSys Pragma Kaedra Spacial Prisma - Pack Prisma - PH Prisma - P Prisma - G |
| Resistivitet | 10000 M?.m conforming to VDE 0303-T30 10000 M?.m conforming to IEC 60093 |
| Stock Code | On stock |
| Terminal block level | 1 |
| Tilslutningsklemmer | 1 x IDC: beskyttelse nedad 1 x screw terminal: mod strømmen |
| Tilslutningsposition | Top |
| Tilspændingsmoment | 1.5...1.8 N.m |
| Tool type | Without tool Disconnection: screwdriver Connection: screwdriver |
| Vægt | 11.3 g |
Yderliger oplysninger:
