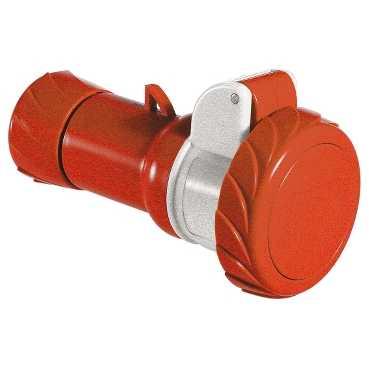

PratiKa forlćngerled lige - 32 A - 3 poler + N + E - 380...415 V AC - IP67
| Varenr: | PKF32M735 |
| El nr: | 3330001307 |
| EAN13 nr: | 3303432032814 |
| Pakning: | 1stk |
 |
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 380...415 V |
| Ambient air temperature for operation | 35 °C ( 86400 s ) -25...40 °C |
| Cable cross section | 2.5...10 mm˛ |
| Cable entry | Cable gland |
| Cable outer diameter | 11.5...21 mm |
| Colour | Grey ( RAL 7035 ) |
| Connections - terminals | Captive screws, completely loosened |
| Contacts material | Brass sleeves: |
| Depth | 173 mm |
| Device short name | PratiKa socket |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Ground lug clockwise position | 6 h |
| Height | 104 mm |
| IK degree of protection | IK08 conforming to EN 62262 |
| Industrial socket type | Screw |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Network frequency | 50/60 Hz |
| Network type | AC |
| Outlet standard | Industrial |
| Period | 18 months |
| Plug, socket category | Low voltage |
| Plug, socket material | Self-extinguishing engineering polymer housing: |
| Plug, socket, control station shape | Straight |
| Poles description | 3P + N + E |
| Product or component type | Wander socket |
| Product weight | 0.356 kg |
| Range of product | PratiKa |
| Relative humidity | 90 % ( 20 °C ) 70 % ( 30 °C ) 50 % ( 40 °C ) |
| Standards | IEC 60309-1 IEC 60309-2 |
| Thread type | Pg 21 |
| Voltage colour | Red |
| Width | 104 mm |
Yderliger oplysninger:
