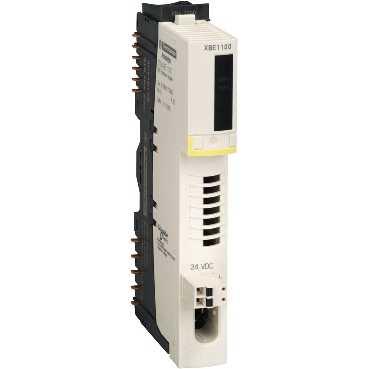

Modicon STB kit bus-udvidelse (slutmodul)
| Varenr: | STBXBE1100K |
| El nr: | 7586022314 |
| EAN13 nr: | 3595863949254 |
| Pakning: | 1stk |
 |
| Ambient air temperature for storage | -40...85 °C |
| Driftshøjde | <= 2000 m |
| EAN-nummer | 3595863949254 |
| Electromagnetisk kompatibilitet | Immunity to electromagnetic interference IEC 61131-2 |
| Elektrisk tilslutning | Firewire interface |
| Forureningsgrad | 2 IEC 60664-1 |
| IP kapslingsklasse | 18-22 EN 61131-2 class 1 |
| Kit sæt | STBXBA2400 str. 2 base STBXBE1100 modul STBXTS1120, 2-terminal screw type connector STBXTS2120, 2-terminal spring clamp connector |
| Kommerciel status | Commercialised |
| Kompatibilitet | Stogard STB moduler |
| Lagerkode | På lager |
| Montagested | End of segment (except for the last segment) |
| Mærkning | CE |
| Overspændingskategori | II |
| Product environmental profile | Tilgængelig |
| Productcertificeringer | CSA FM klasse 1 Division 2 UL |
| Produktsortiment | Modicon STB distributed I/O solution |
| Produkttype | EOS internal bus extension kit |
| REACh | Reference not containing SVHC above the threshold |
| Relativ fugtighed | 95 % 60 °C without condensation |
| RoHS (date code: YYWW) | Will not be Compliant |
| Shockmodstand | 30 gn 11 ms IEC 88 reference 2-27 |
| Sustainable offer status | Ikke Green Premium produkt |
| Vibrationsmodstand | 5 gn 58...150 Hz 35 x 15 mm symmetrical DIN rail 3 gn 58...150 Hz 35 x 7.5 mm symmetrical DIN rail +/-0.35 mm 10...58 Hz |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
