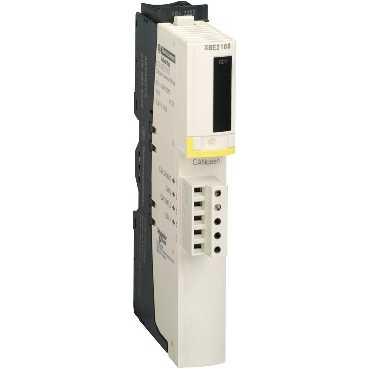

Modicon STB kit CANopen break-out modul
| Varenr: | STBXBE2100K |
| El nr: | 7586022330 |
| EAN13 nr: | 3595863949230 |
| Pakning: | 1stk |
 |
| Ambient air temperature for operation | 0...60 °C without derating |
| Ambient air temperature for storage | -40...85 °C |
| Driftshøjde | <= 2000 m |
| EAN-nummer | 3595863949230 |
| Electromagnetisk kompatibilitet | Immunity to electromagnetic interference IEC 61131-2 |
| Elektrisk tilslutning | 5 pins for CANopen devices interface |
| Forureningsgrad | 2 IEC 60664-1 |
| IP kapslingsklasse | 18-22 EN 61131-2 class 1 |
| Kit sæt | STBXBA2000 I/O base STBXBE2100 island bus extension STBXTS1110, 5-terminal screw type connector STBXTS2110, 5-terminal spring clamp connector |
| Kommerciel status | Commercialised |
| Kompatibilitet | Stogard STB moduler |
| Lagerkode | Ikke på lager |
| Montagested | Enden af sidste segment |
| Mærkning | CE |
| Overspændingskategori | II |
| Product environmental profile | Tilgængelig |
| Productcertificeringer | CSA FM klasse 1 Division 2 UL |
| Produktsortiment | Modicon STB distributed I/O solution |
| Produkttype | Bus extension kit |
| REACh | Reference not containing SVHC above the threshold |
| Relativ fugtighed | 95 % 60 °C without condensation |
| RoHS (date code: YYWW) | Will not be Compliant |
| Shockmodstand | 30 gn 11 ms IEC 88 reference 2-27 |
| Sustainable offer status | Ikke Green Premium produkt |
| Vibrationsmodstand | 5 gn 58...150 Hz 35 x 15 mm symmetrical DIN rail 3 gn 58...150 Hz 35 x 7.5 mm symmetrical DIN rail +/-0.35 mm 10...58 Hz |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
