| [Us] rated supply voltage | 24 V |
| Alarm function | Power supply fault Switch fault Data link status Redundancy ring fault |
| Alarm output | 1 voltfree contact <= 1 A |
| Ambient air temperature for operation | 0...60 °C |
| Cable length | 100 m copper cable |
| Communication port protocol | Ethernet TCP/IP |
| Concept | Transparent Ready |
| Depth | 111 mm |
| Electrical connection | Removable connector 6 ways power supply |
| Ethernet cabling system | TF switches |
| Height | 131 mm |
| Integrated connection type | Shielded RJ45 copper cable |
| IP degree of protection | IP20 |
| Local signalling | 1 LED per channel copper port status 1 LED per channel copper port activity 1 LED stand-by 1 LED ring manager 1 LED fault 2 LEDs P1 P2 power supplies |
| Marking | CE |
| Maximum number of switches in a ring | 50 |
| Ethernet service | Configuration via web server Data stream control FDR IGMP Snooping Multicast filtering Priority port Rapid Scanning Tree Protocol (RSTP) Secure port SMTP V3 SNTP client VLAN |
| Maximum number of switches in cascade | Unlimited |
| Mounting support | 35 mm symmetrical DIN rail |
| Port Ethernet | 10/100/1000 BASE-TX - 2 port(s) copper (Gbit) 10BASE-T/100BASE-TX - 8 port(s) copper cable |
| Power consumption | 8.9 W |
| Product certifications | C-Tick GL |
| Product environmental profile | Available Download Product environmental |

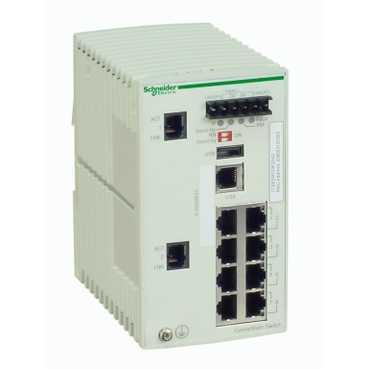

| Product or component type | Ethernet TCP/IP managed switch |
| Product weight | 0.41 kg |
| Range of product | ConneXium |
| Redundancy | Redundant power supplies Redundant single ring Ring coupling |
| Relative humidity | 10...95 % without condensation |
| RoHS | Compliant - since 0617 - Schneider Electric declaration of conformity |
| Standards | CSA C22.2 No 142 CUL 60950 UL 1604 UL 508 CSA C22.2 No 213 Class I Division 2 |
| Supply voltage limits | 18...30 V AC SELV 9.6...60 V DC SELV |
| Sustainable offer status | Not Green Premium product |
| Transmission support medium | Twisted shielded pairs cable CAT 6 for copper cable |
| Width | 74 mm |
