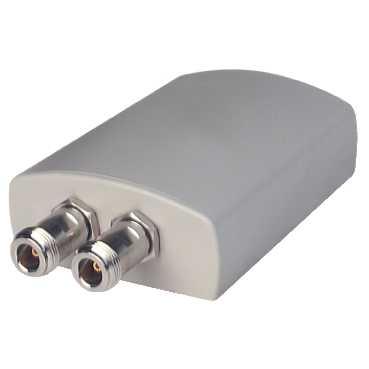

Antenne - 2.4 GHz - dobbelt hćldning
| Varenr: | TCSWAB2S |
| El nr: | 7586035068 |
| EAN13 nr: | 3595862001885 |
| Pakning: | 1stk |
 |
| Ambient air temperature for operation | -45...80 °C |
| Ambient air temperature for storage | -40...80 °C |
| Antenna gain | 8 dBi 2400 Hz...2485 MHz |
| Average impedance | 50 Ohm |
| Bandwidth | 2400 Hz...2485 MHz |
| Colour | Silk grey |
| Colour code | RAL 7044 |
| Electrical connection | 2 female connectors type N |
| Front to back ratio | 14 dB |
| Half-power beamwidth | 70 ° vertical 75 ° horizontal |
| IP degree of protection | IP65 |
| Kit composition | Mounting kit Antenna 2 x 1 m cable with N male connectors at both ends 2 x adaptor R-SMA male connector to N female connector |
| Material | LEXAN EXL9330 |
| Maximum load | 15 N wind speed of 99 m/h 15 N wind speed of 160 km/h |
| Outer dimension | 101 x 80 x 35 mm |
| Product or component type | Antenna |
| Product weight | 0.11 kg |
| Range of product | ConneXium |
| Rated power in W | 10 W 25 °C |
| RoHS | Will not be Compliant |
| Sustainable offer status | Not Green Premium product |
| Tilting angle | 0 ° |
| Type of polarization | Dual linear, +/- 45° slant |
| Voltage standing wave ratio | 1.5 |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
