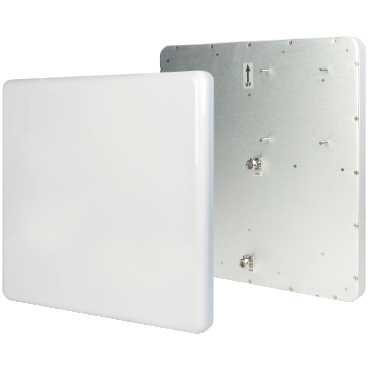

Antenne - 5 GHz retningsbestemt IEEE 802.11n
| Varenr: | TCSWAB5VN |
| El nr: | 7586035123 |
| EAN13 nr: | 3595862001878 |
| Pakning: | 1stk |
 |
| Ambient air temperature for operation | -45...70 °C |
| Ambient air temperature for storage | -45...70 °C |
| Antenna gain | 23 dBi 5150 Hz...5875 MHz |
| Average impedance | 50 Ohm |
| Bandwidth | 5150 Hz...5875 MHz |
| Colour | Grey white |
| Electrical connection | 2 female connectors type N |
| Half-power beamwidth | 9 ° vertical 9 ° horizontal |
| IP degree of protection | IP65 IP67 |
| Kit composition | Antenna 2 x 1 m cable with N male connectors at both ends 2 x adaptor R-SMA male connector to N female connector Mounting kit for wall and mast mount |
| Material | Plastic |
| Maximum load | 264 N wind speed of 136 m/h 264 N wind speed of 220 km/h |
| Outer dimension | 371 x 371 x 40 mm |
| Product or component type | Antenna |
| Product weight | 2.5 kg |
| Range of product | ConneXium |
| Rated power in W | 6 W 25 °C |
| RoHS | Will not be Compliant |
| Sustainable offer status | Not Green Premium product |
| Type of polarization | Vertical Horizontal Dual linear |
| Voltage standing wave ratio | <= 1.7 |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
