| [Us] rated supply voltage | 100...240 V AC |
| Accuracy | +/- 0.1 % at 20...100 Hz for fast output |
| Ambient air temperature for operation | -10...55 °C for horizontal installation -10...50 °C for vertical installation |
| Ambient air temperature for storage | -25...70 °C |
| Application structure | 8 event tasks 4 cyclic master tasks 3 cyclic master tasks + 1 freewheeling task 8 external event tasks |
| Backup time | 2 years at 25 °C |
| Battery type | BR2032 lithium non-rechargeable, battery life: 4 yr |
| Cable length | <= 3 m shielded cable for fast output <= 50 m unshielded cable for output <= 10 m shielded cable for fast input <= 50 m unshielded cable for input |
| Clock drift | <= 60 s/month at 25 °C |
| Communication port protocol | Modbus non isolated serial link with master/slave method |
| Configurable filtering time | 1 µs for fast input |
| Control signal type | Single phase signal at 200 kHz for fast input (HSC mode) Pulse/direction signal at 200 kHz for fast input (HSC mode) A/B signal at 100 kHz for fast input (HSC mode) |
| Counting input number | 4 fast input (HSC mode) |
| Current state 0 guaranteed | <= 1.5 mA for fast input <= 1 mA for input |
| Current state 1 guaranteed | >= 5 mA for fast input >= 2.5 mA for input |
| Data backed up | 128 MB built-in flash memory for backup of user programs |
| Data storage equipment | <= 32 GB SD card optional |
| Depth | 95 mm |
| Discrete I/O number | 40 |
| Discrete input current | 7 mA for input |
| Discrete input logic | Sink or source |
| Discrete input number | 24 discrete input including 8 fast input conforming to IEC 61131-2 Type 1 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete output current | 0.5 A with TR0...TR3 terminal(s) for transistor output 2 A with Q4...Q15 terminal(s) for relay output 0.1 A with TR0...TR3 terminal(s) for fast output (PTO mode) |
| Discrete output logic | Positive logic (source) |
| Discrete output number | 12 relay 4 transistor including 4 fast output |
| Discrete output type | Relay Transistor |
| Discrete output voltage | 24 V DC for transistor output 5...250 V AC for relay output 5...125 V DC for relay output |
| Electrical connection | Removable screw terminal block for connecting the 24 V DC power supply (pitch 5.08 mm) Removable screw terminal block for inputs and outputs (pitch 5.08 mm) |
| Electromagnetic emission | Radiated emissions, test level: 47 dB?V/m QP with class A, condition of test: 10 m (radio frequency: 230 MHz...1 GHz) conforming to EN/IEC 55011 Radiated emissions, test level: 40 dB?V/m QP with class A, condition of test: 10 m (radio frequency: 30...230 |
| Execution time for 1 KInstruction | 0.7 ms for other instruction 0.3 ms for event and periodic task |
| Height | 90 mm |
| Immunity to microbreaks | 10 ms |
| Input impedance | 4.7 kOhm for input |
| Insulation | Non-insulated between supply and ground 500 V AC between supply and internal logic |
| Integrated connection type | USB port with connector mini B USB 2.0 Non isolated serial link "serial 2" with connector removable screw terminal block and interface RS485 Non isolated serial link "serial 1" with connector RJ45 and interface RS232/RS485 |
| IP degree of protection | IP20 with protective cover in place |
| Local signalling | 1 LED per channel green for I/O state 1 LED red for bus fault on TM4 (TM4) 1 LED green for SL2 1 LED green for SL1 1 LED red for BAT 1 LED green for SD card access (SD) 1 LED red for I/O error (I/O) 1 LED red for module error (ERR) 1 LED green for RUN 1 L |
| Marking | CE |
| Memory capacity | 64 MB for system memory RAM 8 MB for program |
| Mounting support | Plate or panel with fixing kit Top hat type TH35-7.5 rail conforming to IEC 60715 Top hat type TH35-15 rail conforming to IEC 60715 |
| Network frequency | 50/60 Hz |
| Number of I/O expansion module | 14 (remote I/O architecture) 7 (local I/O architecture) |
| Operating altitude | 0...2000 m |
| Output frequency | <= 100 kHz for fast output (PLS mode) <= 20 kHz for fast output (PWM mode) <= 1 kHz for transistor output |
| Output voltage limits | 277 V AC relay output 30 V DC transistor output 125 V DC relay output |
| Pollution degree | 2 |
| Positioning functions | PWM/PTO function 4 channel(s) (positioning frequency: 100 kHz) |
| Product certifications | CSA CULus IACS E10 RCM |
| Product end of life instructions | Available |
| Product environmental profile | Available |

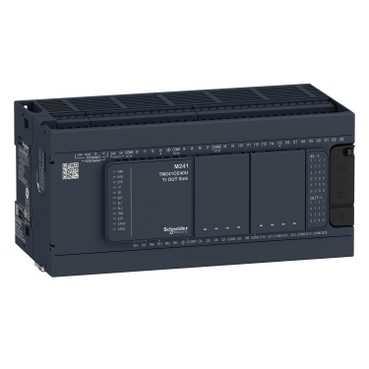

| Product or component type | Logic controller |
| Product weight | 0.62 kg |
| Protection type | Without protection for relay output Reverse polarity protection for transistor output Short-circuit and overload protection with automatic reset for transistor output Short-circuit protection for transistor output |
| Range of product | Modicon M241 |
| REACh | Reference not containing SVHC above the threshold |
| Realtime clock | With |
| Relative humidity | 10...95 % without condensation in storage 10...95 % without condensation in operation |
| Reset time | 12 s fast output 10 ms output |
| Resistance to conducted disturbances, induced by radio frequency fields | 10 V (spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)) conforming to Marine specification (LR, ABS, DNV, GL) 3 V (0.1...80 MHz) conforming to Marine specification (LR, ABS, DNV, GL) 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6 |
| Resistance to electromagnetic fields | 1 V/m (2 GHz...3 GHz) conforming to EN/IEC 61000-4-3 3 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3 10 V/m (80 MHz...1 GHz) conforming to EN/IEC 61000-4-3 |
| Resistance to electrostatic discharge | 4 kV on contact conforming to EN/IEC 61000-4-2 8 kV in air conforming to EN/IEC 61000-4-2 |
| Resistance to fast transients | 1 kV for transistor output conforming to EN/IEC 61000-4-4 1 kV for input conforming to EN/IEC 61000-4-4 1 kV for serial link conforming to EN/IEC 61000-4-4 2 kV for relay output conforming to EN/IEC 61000-4-4 2 kV for power lines conforming to EN/IEC 6100 |
| Response time | 50 µs turn-on operation with I0...I15 terminal(s) for input |
| RoHS (date code: YYWW) | Compliant - since 1350 - Schneider Electric declaration of conformity |
| Sensor power supply | 24 V DC at 400 mA supplied by the controller |
| Shock resistance | 15 gn for 11 ms |
| Standards | CSA C22.2 No 142 UL 1604 UL 508 ANSI/ISA 12-12-01 CSA C22.2 No 213 EN/IEC 61131-2 : 2007 Marine specification (LR, ABS, DNV, GL) |
| Storage altitude | 0...3000 m |
| Supply | Serial link supply "serial 1" at 5 V, 200 mA |
| Supply voltage limits | 85...264 V |
| Surge withstand | 1 kV for transistor output in common mode conforming to EN/IEC 61000-4-5 1 kV for input in common mode conforming to EN/IEC 61000-4-5 1 kV for relay output in differential mode conforming to EN/IEC 61000-4-5 1 kV for power lines (AC) in differential mode |
| Sustainable offer status | Green Premium product |
| Transmission rate | 480 Mbit/s for bus length of 3 m - communication protocol: USB 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m - communication protocol: RS232 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m - communication protocol: |
| Vibration resistance | 3 gn (vibration frequency: 8.4...150 Hz) on panel mounting 3.5 mm (vibration frequency: 5...8.4 Hz) on panel mounting 3 gn (vibration frequency: 8.4...150 Hz) on symmetrical rail 3.5 mm (vibration frequency: 5...8.4 Hz) on symmetrical rail |
| Voltage state 0 guaranteed | <= 5 V for input |
| Voltage state1 guaranteed | >= 15 V for input |
| Width | 190 mm |
