| [Us] rated supply voltage | 24 V DC |
| Acquisition period | 320 ms per channel + 1 controller cycle time temperatur probe 160 ms per channel + 1 controller cycle time voltage/current |
| Acquisition period | 320 ms per channel + 1 controller cycle time temperature probe 160 ms per channel + 1 controller cycle time voltage/current |
| Analog indgangstype | Temperatur probe - 50...150 °C Ni 100/Ni 1000 ikke differential Temperatur probe - 200...600 °C Pt 100/Pt 1000 ikke differential Voltage 0...10 V ikke differential Strøm 4...20 mA ikke differential |
| Analoge Indgange | 4 |
| Analogue input number | 4 |
| Analogue input resolution | 12 bits |
| Analogue input type | Temperature probe - 50...150 °C Ni 100/Ni 1000 non differential Temperature probe - 200...600 °C Pt 100/Pt 1000 non differential Voltage 0...10 V non differential Current 4...20 mA non differential |
| Bredde | 23.5 mm |
| Cross talk | <= 1 LSB |
| Current consumption | 60 mA 24 V DC external 50 mA 5 V DC internal |
| Depth | 70 mm |
| Dielectric strength | 2500 V between the I/O and internal logic |
| Dielektrisk gennemslagsholdbarhed | 2500 V between the I/O and internal logic |
| Dybde | 70 mm |
| EAN-nummer | 3595863996333 |
| Electrical connection | 1 removable screw terminal block |
| Elektrisk tilslutning | 1 removable screw terminal block |
| Forsyning | Ekstern forsyning |
| Forsyningsspændingsgrænser | 20.4...28.8 V |
| Gentagelsesnøjagtighed | +/-0.1 %FS |
| Height | 90 mm |
| Højde | 90 mm |
| Indgangsimpedans | >= 10 kOhm temperatur probe 470 Ohm strøm 10 kOhm voltage |
| Input impedance | >= 10 kOhm temperature probe 470 Ohm current 10 kOhm voltage |
| Insulation between channel and internal logic | Photocoupler |
| Kommerciel status | Commercialised |
| Lagerkode | På lager |
| Ledningstype | Skærm kabel |
| LSB value | 0.05 °C temperature probe Ni 100/Ni 1000 0.2 °C temperature probe Pt 100/Pt 1000 4.8 µA current current 2.5 mV voltage voltage |
| LSB værdi | 0.05 °C temperatur probe Ni 100/Ni 1000 0.2 °C temperatur probe Pt 100/Pt 1000 4.8 µA strøm strøm 2.5 mV voltage voltage |
| Measurement error | +/- 0.4 % of full scale Pt 100/Pt 1000, Ni 100/ Ni 1000 25 °C +/- 0.2 % of full scale 4...20 mA 4...20 mA 25 °C +/- 0.2 % of full scale 0...10 V 0...10 V 25 °C |
| Målefejl | +/- 0.4 % af fuld skala Pt 100/Pt 1000, Ni 100/ Ni 1000 25 °C +/- 0.2 % af fuld skala 4...20 mA 4...20 mA 25 °C +/- 0.2 % af fuld skala 0...10 V 0...10 V 25 °C |
| Non-linearity | +/- 0.02 %FS |
| Opløsning | 12 bits |
| Permissible continuous overload | 40 mA current 13 V voltage |
| Product end of life instructions | Available Download Bortskaffelsesmanual |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |
| Product environmental profile | Tilgængelig Download Produktmiljøprofil |

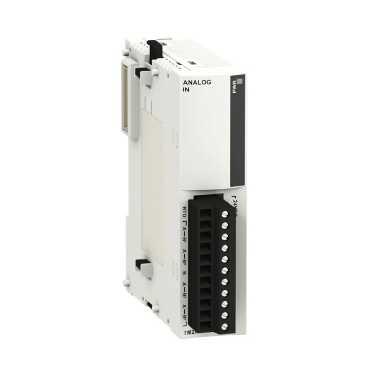

| Product or component type | Analog input module |
| Product weight | 0.085 kg |
| Produktsortiment | Modicon M238 logic controller |
| Produkttype | Analog indgangsmodul |
| Prøvevarighed | <= 160 ms |
| Range compatibility | Advantys OTB Twido |
| Range of product | Modicon M238 logic controller |
| REACh | Reference not containing SVHC above the threshold |
| Reguleringskompatibilitet | Advantys OTB Twido |
| Repeat accuracy | +/-0.1 %FS |
| RoHS (date code: YYWW) | Compliant - since 1039 - Schneider Electric declaration of conformity |
| Samlede fejl | +/-0.5 %FS |
| Sampling duration | <= 160 ms |
| Strømforbrug | 60 mA 24 V DC ekstern 50 mA 5 V DC intern |
| Supply | External supply |
| Supply voltage limits | 20.4...28.8 V |
| Sustainable offer status | Green Premium product |
| Sustainable offer status | Green Premium produkt |
| Temperature coefficient | +/- 0.009 %FS/°C voltage +/- 0.009 %FS/°C current +/- 0.004 %FS/°C temperature probe |
| Temperaturkoefficient | +/- 0.009 %FS/°C voltage +/- 0.009 %FS/°C strøm +/- 0.004 %FS/°C temperatur probe |
| Tilladelig vedvarende overbelastning | 40 mA strøm 13 V voltage |
| Total error | +/-0.5 %FS |
| Type of cable | Shielded cable |
| Vægt | 0.085 kg |
| Width | 23.5 mm |
