| [Us] rated supply voltage | 24 V DC |
| Acquisition period | 60 ms per channel + 1 controller cycle time |
| Analog indgangstype | Voltage 0...10 V ikke differential Strøm 4...20 mA ikke differential |
| Analog udgangstype | Voltage 0...10 V Strøm 4...20 mA |
| Analoge Indgange | 2 |
| Analoge udgange | 1 |
| Analogue input number | 2 |
| Analogue input resolution | 12 bits |
| Analogue input type | Voltage 0...10 V non differential Current 4...20 mA non differential |
| Analogue output number | 1 |
| Analogue output resolution | 12 bits |
| Analogue output type | Voltage 0...10 V Current 4...20 mA |
| Belastningsimpedans | >= 2000 Ohm voltage <= 300 Ohm strøm |
| Belastningstype | Modstandsdygtig |
| Bredde | 23.5 mm |
| Conversion time | 20 ms + 1 controller cycle time |
| Cross talk | <= 2 LSB |
| Current consumption | 50 mA 5 V DC internal 50 mA 24 V DC external |
| Depth | 70 mm |
| Dielectric strength | 500 V between the I/O and the external supply circuit 500 V between the I/O and internal logic 500 V between I/O channel |
| Dielektrisk gennemslagsholdbarhed | 500 V between the I/O and the external supply circuit 500 V between the I/O and internal logic 500 V between I/O channel |
| Dybde | 70 mm |
| EAN-nummer | 3595863995992 |
| Electrical connection | 1 removable screw terminal block |
| Elektrisk tilslutning | 1 removable screw terminal block |
| Forsyning | Ekstern forsyning |
| Forsyningsspændingsgrænser | 19.2...30 V |
| Gentagelsesnøjagtighed | +/-0.5 %FS input/output |
| Height | 90 mm |
| Højde | 90 mm |
| Indgangsimpedans | >= 1 MOhm voltage >= 10 Ohm strøm |
| Indgangsniveau | Højt niveau |
| Input impedance | >= 1 MOhm voltage >= 10 Ohm current |
| Input level | High level |
| Insulation between channel and internal logic | Photocoupler |
| Kommerciel status | Commercialised |
| Konverteringstid | 20 ms + 1 controller cycle time |
| Lagerkode | På lager |
| Ledningstype | Skærm kabel |
| Load impedance ohmic | >= 2000 Ohm voltage <= 300 Ohm current |
| Load type | Resistive |
| LSB value | 4.8 µA current current 2.5 mV voltage voltage |
| LSB værdi | 4.8 µA strøm strøm 2.5 mV voltage voltage |
| Measurement error | +/- 0.2 % of full scale 4...20 mA 4...20 mA 25 °C +/- 0.2 % of full scale 0...10 V 0...10 V 25 °C |
| Målefejl | +/- 0.2 % af fuld skala 4...20 mA 4...20 mA 25 °C +/- 0.2 % af fuld skala 0...10 V 0...10 V 25 °C |
| Non-linearity | +/- 0.2 %FS voltage voltage +/- 0.2 %FS current current |
| Non-linearity | +/- 0.2 %FS voltage voltage +/- 0.2 %FS strøm strøm |
| Opløsning | 12 bits |
| Output error | +/- 1 %FS |
| Output ripple | <= 1 LSB |
| Permissible continuous overload | 40 mA current 13 V voltage |
| Product end of life instructions | Available Download Bortskaffelsesmanual |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |
| Product environmental profile | Tilgængelig Download Produktmiljøprofil |

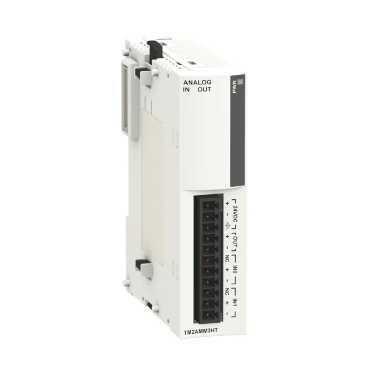

| Product or component type | Input/output analog module |
| Product weight | 0.085 kg |
| Produktsortiment | Modicon M238 logic controller |
| Produkttype | Input/output analog module |
| Prøvevarighed | <= 10 ms |
| Range compatibility | Advantys OTB Twido |
| Range of product | Modicon M238 logic controller |
| REACh | Reference contains SVHC above the threshold - Go to CaP for more details |
| Reguleringskompatibilitet | Advantys OTB Twido |
| Repeat accuracy | +/-0.5 %FS input/output |
| RoHS (date code: YYWW) | Compliant - since 1039 - Schneider Electric declaration of conformity |
| Samlede fejl | +/-1 %FS voltage voltage +/-1 %FS strøm strøm |
| Sampling duration | <= 10 ms |
| Stabilisation time | 20 ms |
| Stabiliseringstid | 20 ms |
| Strømforbrug | 50 mA 5 V DC intern 50 mA 24 V DC ekstern |
| Supply | External supply |
| Supply voltage limits | 19.2...30 V |
| Sustainable offer status | Green Premium product |
| Sustainable offer status | Green Premium produkt |
| Sustainable offer status | Not Green Premium product |
| Temperature coefficient | +/-0.015 %FS/°C 4...20 mA 4...20 mA +/-0.015 %FS/°C 0...10 V 0...10 V +/-0.006 %FS/°C 4...20 mA +/-0.006 %FS/°C 0...10 V |
| Temperaturkoefficient | +/-0.015 %FS/°C 4...20 mA 4...20 mA +/-0.015 %FS/°C 0...10 V 0...10 V +/-0.006 %FS/°C 4...20 mA +/-0.006 %FS/°C 0...10 V |
| Tilladelig vedvarende overbelastning | 40 mA strøm 13 V voltage |
| Total error | +/-1 %FS voltage voltage +/-1 %FS current current |
| Type of cable | Shielded cable |
| Udgangsfejl | +/- 1 %FS |
| Vægt | 0.085 kg |
| Width | 23.5 mm |
