| [Us] rated supply voltage | 24 V DC |
| Acquisition period | 320 ms per group of channel + 1 controller cycle time |
| Analog indgangstype | Temperatur probe - 50...200 °C Pt 1000 ikke differential Temperatur probe - 200...600 °C Pt 100 ikke differential |
| Analoge Indgange | 8 |
| Analogue input number | 8 |
| Analogue input resolution | 12 bits |
| Analogue input type | Temperature probe - 50...200 °C Pt 1000 non differential Temperature probe - 200...600 °C Pt 100 non differential |
| Bredde | 90 mm |
| Current consumption | 90 mA 5 V DC internal <= 140 mA 24 V DC external |
| Depth | 70 mm |
| Dielectric strength | 500 V between the I/O and the external supply circuit 2500 V between the I/O and internal logic |
| Dielektrisk gennemslagsholdbarhed | 500 V between the I/O and the external supply circuit 2500 V between the I/O and internal logic |
| Dybde | 70 mm |
| EAN-nummer | 3595863985207 |
| Electrical connection | 1 removable screw terminal block sensors 1 removable screw terminal block power supply |
| Elektrisk tilslutning | 1 removable screw terminal block sensorer 1 removable screw terminal block effektforsyning |
| Forsyning | Ekstern forsyning |
| Forsyningsspændingsgrænser | 19.2...30 V |
| Gentagelsesnøjagtighed | +/- 0.1 °C |
| Height | 90 mm |
| Højde | 90 mm |
| Indgangsimpedans | >= 10 kOhm |
| Input impedance | >= 10 kOhm |
| Insulation between channel and internal logic | Photocoupler |
| Kommerciel status | Commercialised |
| Lagerkode | På lager |
| LSB value | 0.2 °C Pt 100 0.006 °C Pt 1000 |
| LSB værdi | 0.2 °C Pt 100 0.006 °C Pt 1000 |
| Measurement error | +/- 0.5 % of full scale Pt 100 25 °C +/- 0.3 % of full scale Pt 1000 25 °C |
| Målefejl | +/- 0.5 % of full scale Pt 100 25 °C +/- 0.3 % af fuld skala Pt 1000 25 °C |
| Opløsning | 12 bits |
| Product end of life instructions | Available Download Bortskaffelsesmanual |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |
| Product environmental profile | Tilgængelig Download Produktmiljøprofil |

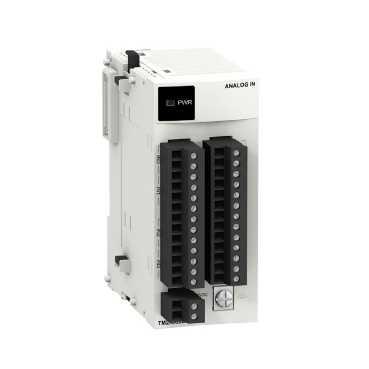

| Product or component type | Analog input module |
| Product weight | 0.19 kg |
| Produktsortiment | Modicon M238 logic controller |
| Produkttype | Analog indgangsmodul |
| Prøvevarighed | <= 160 ms |
| Range compatibility | Advantys OTB Twido |
| Range of product | Modicon M238 logic controller |
| REACh | Reference not containing SVHC above the threshold |
| Reguleringskompatibilitet | Advantys OTB Twido |
| Repeat accuracy | +/- 0.1 °C |
| RoHS (date code: YYWW) | Compliant - since 1039 - Schneider Electric declaration of conformity |
| Samlede fejl | 4 °C Pt 100 1 °C Pt 1000 |
| Sampling duration | <= 160 ms |
| Strømforbrug | 90 mA 5 V DC intern <= 140 mA 24 V DC ekstern |
| Supply | External supply |
| Supply voltage limits | 19.2...30 V |
| Sustainable offer status | Green Premium product |
| Sustainable offer status | Green Premium produkt |
| Temperature coefficient | +/-0.01 %FS/°C |
| Temperaturkoefficient | +/-0.01 %FS/°C |
| Total error | 4 °C Pt 100 1 °C Pt 1000 |
| Vægt | 0.19 kg |
| Width | 90 mm |
