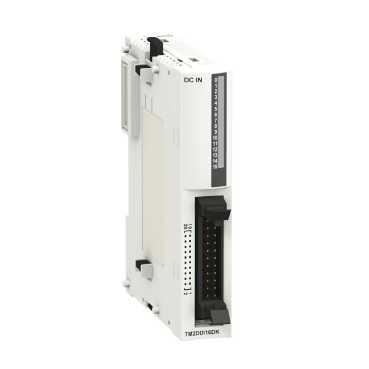

Digitalt input modul M238 16 inputs 24 V DC - 1 konnektor HE10
| Varenr: | TM2DDI16DK |
| El nr: | 7586003524 |
| EAN13 nr: | 3595863995732 |
| Pakning: | 1stk |
 |
| Adskillelse mellem kanaler | Ingen |
| Antal fællespunkter | 1 |
| Bredde | 21.4 mm |
| Current consumption | 35 mA 5 V DC at state 1 for all input |
| Depth | 81.3 mm |
| Digital indgangslogik | Sink or source |
| Digital indgangsnummer | 16 |
| Digital indgangsspænding | 24 V |
| Digital indgangsspænding | DC |
| Digital indgangsstrøm | 5 mA |
| Discrete input current | 5 mA |
| Discrete input logic | Sink or source |
| Discrete input number | 16 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Dybde | 81.3 mm |
| EAN-nummer | 3595863995732 |
| Electrical connection | 1 connector HE10 |
| Elektrisk tilslutning | 1 forbindelse HE10 |
| Height | 90 mm |
| Højde | 90 mm |
| Indgangsimpedans | 4.4 kOhm |
| Indgangsspændingsgrænser | 20.4...28.8 V |
| Input impedance | 4.4 kOhm |
| Input voltage limits | 20.4...28.8 V |
| Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute |
| Kommerciel status | Commercialised |
| Lagerkode | Ikke på lager |
| Local signalling | 2 display blocks |
| Lokal indikering | 2 display blocks |
| Montagevejledning | 35 mm symmetrical DIN rail |
| Mounting support | 35 mm symmetrical DIN rail |
| Number of common point | 1 |
| Product end of life instructions | Available Download Bortskaffelsesmanual |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |
| Product environmental profile | Tilgængelig Download Produktmiljøprofil |
| Product or component type | Discrete input module |
| Product weight | 0.1 kg |
| Produktsortiment | Modicon M238 logic controller |
| Produkttype | Separat indgangsmodul |
| Range compatibility | Advantys OTB Twido |
| Range of product | Modicon M238 logic controller |
| REACh | Reference contains SVHC above the threshold - Go to CaP for more details |
| Reaktionstid | 4 ms ved stadie 1 4 ms ved stadie 0 |
| Reguleringskompatibilitet | Advantys OTB Twido |
| Response time | 4 ms at state 1 4 ms at state 0 |
| RoHS (date code: YYWW) | Compliant - since 1039 - Schneider Electric declaration of conformity |
| Strømforbrug | 35 mA 5 V DC ved stadie 1 for all input |
| Sustainable offer status | Green Premium product |
| Sustainable offer status | Green Premium produkt |
| Sustainable offer status | Not Green Premium product |
| Vægt | 0.1 kg |
| Width | 21.4 mm |
Yderliger oplysninger:
