| [Ures] residual voltage | <= 1 V at state 1 |
| [Ures] residual voltage | <= 1 V ved stadie 1 |
| Adskillelse mellem kanaler | Ingen |
| Antal digitale udgange | 16 |
| Antal fællespunkter | 1 |
| Bredde | 21.4 mm |
| Current consumption | 20 mA 24 V DC at state 1 for all output 15 mA 5 V DC at state 1 for all output |
| Current per channel | 0.48 A |
| Current per output common | 2 A |
| Depth | 81.3 mm |
| Digital udgangslogik | Kilde |
| Digital udgangspænding | 24 V |
| Digital udgangstype | Transistor |
| Discrete output current | 0.4 A |
| Discrete output logic | Source |
| Discrete output number | 16 |
| Discrete output type | Transistor |
| Discrete output voltage | 24 V |
| Dybde | 81.3 mm |
| EAN-nummer | 3595863995800 |
| Electrical connection | 1 connector HE10 |
| Elektrisk tilslutning | 1 forbindelse HE10 |
| Height | 90 mm |
| Højde | 90 mm |
| Inductive load | <= 10 mH |
| Induktiv belastning | <= 10 mH |
| Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute |
| Kommerciel status | Commercialised |
| Kortslutningsbeskyttelse | With automatic reactivaton |
| Lagerkode | På lager |
| Leakage current | 0.1 mA |
| Local signalling | 2 display blocks |
| Lokal indikering | 2 display blocks |
| Lækstrøm | 0.1 mA |
| Montagevejledning | 35 mm symmetrical DIN rail |
| Mounting support | 35 mm symmetrical DIN rail |
| Number of common point | 1 |
| Output voltage limits | 20.4...28.8 V |
| Overbelastningsbeskyttelse | With automatic reactivaton |
| Overload protection | With automatic reactivaton |
| Product end of life instructions | Available Download Bortskaffelsesmanual |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |
| Product environmental profile | Tilgængelig Download Produktmiljøprofil |

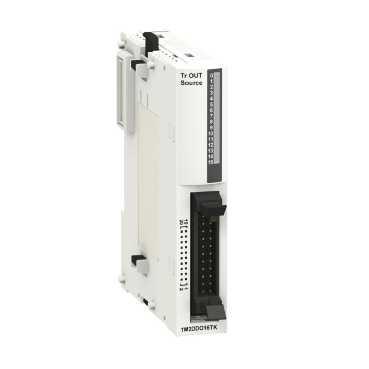

| Product or component type | Discrete output module |
| Product weight | 0.07 kg |
| Produktsortiment | Modicon M238 logic controller |
| Produkttype | Separat udgang modul |
| Range compatibility | Advantys OTB Twido |
| Range of product | Modicon M238 logic controller |
| REACh | Reference contains SVHC above the threshold - Go to CaP for more details |
| Reaktionstid | 450 µs from state 1 to state 0 450 µs from state 0 to state 1 |
| Reguleringskompatibilitet | Advantys OTB Twido |
| Response time | 450 µs from state 1 to state 0 450 µs from state 0 to state 1 |
| RoHS (date code: YYWW) | Compliant - since 1039 - Schneider Electric declaration of conformity |
| Short-circuit protection | With automatic reactivaton |
| Strøm pr. fælles udgang | 2 A |
| Strøm pr. kanal | 0.48 A |
| Strømforbrug | 20 mA 24 V DC ved stadie 1 for all output 15 mA 5 V DC ved stadie 1 for all output |
| Sustainable offer status | Green Premium product |
| Sustainable offer status | Green Premium produkt |
| Sustainable offer status | Not Green Premium product |
| Tungsten load | <= 9.6 W |
| Udgangsspændingsgrænser | 20.4...28.8 V |
| Udgangsstrøm | 0.4 A |
| Vægt | 0.07 kg |
| Width | 21.4 mm |
| Wolfram belastning | <= 9.6 W |
