| [Ures] residual voltage | <= 1 V at state 1 |
| [Ures] residual voltage | <= 1 V ved stadie 1 |
| Adskillelse mellem kanaler | Ingen |
| Antal digitale udgange | 32 |
| Antal fællespunkter | 2 |
| Bredde | 33.5 mm |
| Current consumption | 70 mA 24 V DC at state 1 for all output 20 mA 5 V DC at state 1 for all output |
| Current per channel | 0.12 A |
| Current per output common | 1 A |
| Depth | 81.3 mm |
| Digital udgangslogik | Zink |
| Digital udgangspænding | 24 V |
| Digital udgangstype | Transistor |
| Discrete output current | 0.1 A |
| Discrete output logic | Sink |
| Discrete output number | 32 |
| Discrete output type | Transistor |
| Discrete output voltage | 24 V |
| Dybde | 81.3 mm |
| EAN-nummer | 3595863995916 |
| Electrical connection | 1 connector HE10 |
| Elektrisk tilslutning | 1 forbindelse HE10 |
| Height | 90 mm |
| Højde | 90 mm |
| Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute |
| Kommerciel status | Commercialised |
| Kortslutningsbeskyttelse | Uden |
| Lagerkode | Ikke på lager |
| Local signalling | 2 display blocks |
| Lokal indikering | 2 display blocks |
| Montagevejledning | 35 mm symmetrical DIN rail |
| Mounting support | 35 mm symmetrical DIN rail |
| Number of common point | 2 |
| Output voltage limits | 20.4...28.8 V |
| Overbelastningsbeskyttelse | Uden |
| Overload protection | Without |
| Product end of life instructions | Available Download Bortskaffelsesmanual |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |
| Product environmental profile | Tilgængelig Download Produktmiljøprofil |

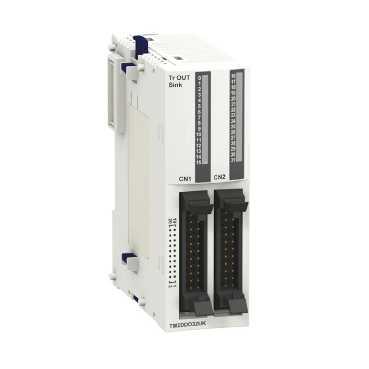

| Product or component type | Discrete output module |
| Product weight | 0.105 kg |
| Produktsortiment | Modicon M238 logic controller |
| Produkttype | Separat udgang modul |
| Range compatibility | Advantys OTB Twido |
| Range of product | Modicon M238 logic controller |
| REACh | Reference contains SVHC above the threshold - Go to CaP for more details |
| Reaktionstid | 300 µs from state 1 to state 0 300 µs from state 0 to state 1 |
| Reguleringskompatibilitet | Advantys OTB Twido |
| Response time | 300 µs from state 1 to state 0 300 µs from state 0 to state 1 |
| RoHS (date code: YYWW) | Compliant - since 1039 - Schneider Electric declaration of conformity |
| Short-circuit protection | Without |
| Strøm pr. fælles udgang | 1 A |
| Strøm pr. kanal | 0.12 A |
| Strømforbrug | 70 mA 24 V DC ved stadie 1 for all output 20 mA 5 V DC ved stadie 1 for all output |
| Sustainable offer status | Green Premium product |
| Sustainable offer status | Green Premium produkt |
| Sustainable offer status | Not Green Premium product |
| Tungsten load | <= 8 W |
| Udgangsspændingsgrænser | 20.4...28.8 V |
| Udgangsstrøm | 0.1 A |
| Vægt | 0.105 kg |
| Width | 33.5 mm |
| Wolfram belastning | <= 8 W |
