| Adskillelse mellem kanaler | 1500 V for 1 minute |
| Antal digitale udgange | 8 |
| Antal fællespunkter | 2 |
| Bredde | 27.3 mm |
| Contact resistance | <= 45 mOhm |
| Current consumption | 40 mA 24 V DC at state 1 for all output 30 mA 5 V DC at state 1 for all output |
| Current per channel | 2...5 A |
| Current per output common | 7 A |
| Depth | 84.6 mm |
| Digital udgangsfunktion | 1 NO |
| Digital udgangstype | Relæ |
| Discrete output function | 1 NO |
| Discrete output number | 8 |
| Discrete output type | Relay |
| Dybde | 84.6 mm |
| EAN-nummer | 3595863995930 |
| Electrical connection | 1 removable screw terminal block |
| Electrical durability | 100000 cycles 2 A 30 V DC resistive 100000 cycles 2 A 240 V AC resistive 100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms) 100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive 100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive |
| Elektrisk holdbarhed | 100000 kredsløb 2 A 30 V DC modstandsdygtig 100000 kredsløb 2 A 240 V AC modstandsdygtig 100000 kredsløb 1 A DC-13 24 V DC inductive (L/R = 7 ms) 100000 kredsløb 1 A AC-15 240 V AC cos phi = 0.7 inductiv 100000 kredsløb 0.5 A AC-15 240 V AC cos phi = 0.35 |
| Elektrisk tilslutning | 1 removable screw terminal block |
| Height | 90 mm |
| Højde | 90 mm |
| Isolation between channels | 1500 V for 1 minute |
| Isolation between channels and internal logic | 2300 V for 1 minute |
| Isolation between output channels group | 1500 V for 1 minute |
| Kommerciel status | Commercialised |
| Kontaktmodstand | <= 45 mOhm |
| Lagerkode | På lager |
| Local signalling | 1 display block |
| Lokal indikering | 1 display block |
| Mechanical durability | 20000000 cycles |
| Mekanisk holdbarhed | 20000000 kredsløb |
| Minimum sluttestrøm | 0.1 mA 0.1 V DC |
| Minimum switching current | 0.1 mA 0.1 V DC |
| Montagevejledning | 35 mm symmetrical DIN rail |
| Mounting support | 35 mm symmetrical DIN rail |
| Number of common point | 2 |
| Product end of life instructions | Available Download Bortskaffelsesmanual |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |
| Product environmental profile | Tilgængelig Download Produktmiljøprofil |

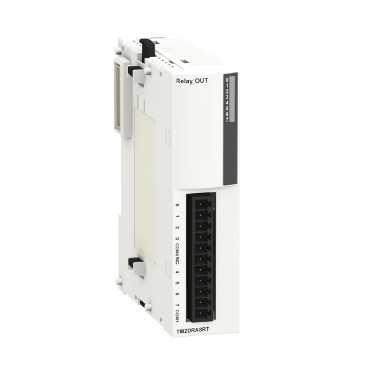

| Product or component type | Discrete output module |
| Product weight | 0.11 kg |
| Produktsortiment | Modicon M238 logic controller |
| Produkttype | Separat udgang modul |
| Range compatibility | Advantys OTB Twido |
| Range of product | Modicon M238 logic controller |
| REACh | Reference contains SVHC above the threshold - Go to CaP for more details |
| Reaktionstid | <= 5 ms from state 1 to state 0 indgang <= 10 ms from state 0 to state 1 indgang |
| Reguleringskompatibilitet | Advantys OTB Twido |
| Response time | <= 5 ms from state 1 to state 0 input <= 10 ms from state 0 to state 1 input |
| RoHS (date code: YYWW) | Compliant - since 1039 - Schneider Electric declaration of conformity |
| Strøm pr. fælles udgang | 7 A |
| Strøm pr. kanal | 2...5 A |
| Strømforbrug | 40 mA 24 V DC ved stadie 1 for all output 30 mA 5 V DC ved stadie 1 for all output |
| Sustainable offer status | Green Premium product |
| Sustainable offer status | Green Premium produkt |
| Sustainable offer status | Not Green Premium product |
| Vægt | 0.11 kg |
| Width | 27.3 mm |
