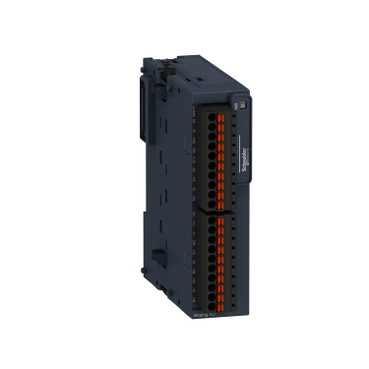

TM3-Modul AI4, AO2 (±10V/0-20mA/4-20mA) fjederklemmer


Varenr:TM3AM6G
El nr:7586047483
EAN13 nr:3606480648953
Pakning:1stk

[Us] rated supply voltage24 V DC
Absolute accuracy error+/- 0.2 % of full scale at 25 °C +/- 1 % of full scale
Ambient air temperature for operation-10...35 °C (vertical installation) -10...55 °C (horizontal installation)
Ambient air temperature for storage-25...70 °C
Analogue input number4
Analogue input resolution11 bits + sign 12 bits
Analogue input typeVoltage, analogue input range: - 10...10 V Voltage, analogue input range: 0...10 V Current, analogue input range: 0...20 mA Current, analogue input range: 4...20 mA
Analogue output number2
Analogue output resolution11 bits + sign 12 bits
Analogue output type- 10...10 V voltage 0...10 V voltage 0...20 mA current 4...20 mA current
Conversion time1 ms + 1 ms per channel + 1 controller cycle time
Cross talk<= 1 LSB
Current consumption100 mA at 24 V DC (full load) via external supply 55 mA at 24 V DC (no load) via external supply 55 mA at 5 V DC (full load) via bus connector 45 mA at 5 V DC (no load) via bus connector
Depth70 mm
Electrical connection10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs, outputs and supply 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs
Electromagnetic emissionRadiated emissions, test level: 47 dB?V/m QP class A (10 m at 230 MHz...1 GHz) conforming to EN/IEC 55011 Radiated emissions, test level: 40 dB?V/m QP class A (10 m at 30...230 MHz) conforming to EN/IEC 55011
Height90 mm
Immunity to microbreaks10 ms
Input impedance>= 1 MOhm voltage <= 50 Ohm current
Insulation500 V AC between output and internal logic 1500 V AC between output and supply 500 V AC between input and internal logic 1500 V AC between input and supply
IP degree of protectionIP20
Load impedance ohmic300 Ohm current 1 kOhm voltage
Load typeResistive
Local signalling1 LED green for PWR
LSB value3.91 µA, analogue input: 4...20 mA current 4.88 µA, analogue input: 0...20 mA current 4.88 mV, analogue input: - 10...10 V voltage 2.44 mV, analogue input: 0...10 V voltage
MarkingCE
Mounting supportPlate or panel with fixing kit Top hat type TH35-7.5 rail conforming to IEC 60715 Top hat type TH35-15 rail conforming to IEC 60715
Non-linearity+/- 0.2 %FS
Operating altitude0...2000 m
Output ripple20 mV
Permissible continuous overload40 mA current 13 V voltage
Pollution degree2
Product end of life instructionsAvailable Download End of life manual
Product environmental profileAvailable Download Product environmental
Product or component typeInput/output analog module
Product weight0.1 kg
Range compatibilityModicon M221 Modicon M241 Modicon M251
Range of productModicon TM3
REAChReference not containing SVHC above the threshold
Relative humidity10...95 % without condensation in storage 10...95 % without condensation in operation
Repeat accuracy+/-0.5 %FS for output +/-0.5 %FS for input
Resistance to conducted disturbances, induced by radio frequency fields3 V at spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) 10 V at 0.15...80 MHz conforming to EN/IEC 61000-4-6
Resistance to electromagnetic fields1 V/m at 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 3 V/m at 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 10 V/m at 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
Resistance to electrostatic discharge4 kV on contact conforming to EN/IEC 61000-4-2 8 kV in air conforming to EN/IEC 61000-4-2
Resistance to fast transients1 kV I/O conforming to EN/IEC 61000-4-4
Resistance to magnetic fields30 A/m at 50...60 Hz conforming to EN/IEC 61000-4-8
RoHS (date code: YYWW)Compliant - since 1415 -  Schneider Electric declaration of conformity
Sampling duration10 ms 1 ms
Shock resistance15 gn during 11 ms
Stabilisation time1 ms
StandardsEN/IEC 61131-2 EN/IEC 61010-2-201
Storage altitude0...3000 m
Supply voltage limits20.4...28.8 V
Surge withstand0.5 kV for I/O with differential mode protection conforming to EN/IEC 61000-4-5 1 kV for I/O with common mode protection conforming to EN/IEC 61000-4-5 0.5 kV for power supply with differential mode protection conforming to EN/IEC 61000-4-5 1 kV for power
Sustainable offer statusGreen Premium product
Temperature drift+/- 0.01 %FS/°C
Type of cable<= 30 m twisted shielded pairs cable for input/output circuit
Vibration resistance3 gn at 8.4...150 Hz with DIN rail mounting support 3.5 mm at 5...8.4 Hz with DIN rail mounting support
Width23.6 mm

Yderliger oplysninger: Se venligst SE katalog
