| [Us] rated supply voltage | 24 V DC |
| Absolute accuracy error | +/- 0.2 % of full scale for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe +/- 0.2 % of full scale for thermocouple C +/- 0.2 % of full scale at 25 °C for analogue input voltage/current +/- 0.4 % of full scale at <= 0 °C for thermocouple N +/- 0.4 % of |
| Ambient air temperature for operation | -10...35 °C (vertical installation) -10...55 °C (horizontal installation) |
| Ambient air temperature for storage | -25...70 °C |
| Analogue input number | 4 |
| Analogue input resolution | 15 bits + sign 16 bits |
| Analogue input type | Pt 1000 temperature probe, analogue input range: - 200...600 °C Pt 100 temperature probe, analogue input range: - 200...850 °C Thermocouple, analogue input range: 0...2315 °C with thermocouple C Thermocouple, analogue input range: - 200...800 °C with ther |
| Conversion time | 10 ms + 10 ms per channel + 1 controller cycle time for analogue input voltage/current 100 ms + 100 ms per channel + 1 controller cycle time for analogue input temperature probe 100 ms + 100 ms per channel + 1 controller cycle time for analogue input ther |
| Cross talk | <= 1 LSB |
| Current consumption | 40 mA at 24 V DC via external supply 35 mA at 24 V DC via external supply 50 mA at 5 V DC via bus connector 45 mA at 5 V DC via bus connector |
| Depth | 70 mm |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply |
| Electromagnetic emission | Radiated emissions, test level: 47 dB?V/m QP class A (10 m at 230 MHz...1 GHz) conforming to EN/IEC 55011 Radiated emissions, test level: 40 dB?V/m QP class A (10 m at 30...230 MHz) conforming to EN/IEC 55011 |
| Height | 90 mm |
| Immunity to microbreaks | 10 ms |
| Input impedance | >= 1 MOhm temperature probe >= 1 MOhm thermocouple >= 1 MOhm voltage <= 50 Ohm current |
| Insulation | 500 V AC between input and internal logic 1500 V AC between input and supply |
| IP degree of protection | IP20 |
| Local signalling | 1 LED green for PWR |
| LSB value | 0.1 °C thermocouple 0.1 °C temperature probe 3.91 µA, analogue input: 4...20 mA current 4.88 µA, analogue input: 0...20 mA current 4.88 mV, analogue input: - 10...10 V voltage 2.44 mV, analogue input: 0...10 V voltage |
| Marking | CE |
| Mounting support | Plate or panel with fixing kit Top hat type TH35-7.5 rail conforming to IEC 60715 Top hat type TH35-15 rail conforming to IEC 60715 |
| Non-linearity | +/- 0.2 %FS |
| Operating altitude | 0...2000 m |
| Permissible continuous overload | 40 mA current 13 V voltage |
| Pollution degree | 2 |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |

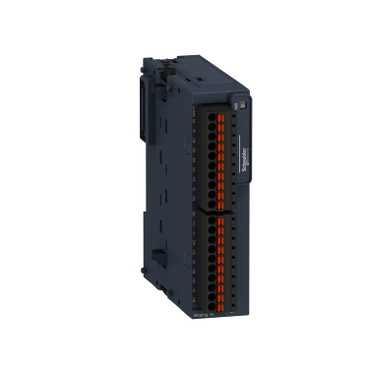

| Product or component type | Analog input module |
| Product weight | 0.1 kg |
| Range compatibility | Modicon M221 Modicon M241 Modicon M251 |
| Range of product | Modicon TM3 |
| REACh | Reference not containing SVHC above the threshold |
| Relative humidity | 10...95 % without condensation in storage 10...95 % without condensation in operation |
| Repeat accuracy | +/-0.5 %FS |
| Resistance to conducted disturbances, induced by radio frequency fields | 3 V at spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) 10 V at 0.15...80 MHz conforming to EN/IEC 61000-4-6 |
| Resistance to electromagnetic fields | 1 V/m at 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 3 V/m at 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 10 V/m at 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 |
| Resistance to electrostatic discharge | 4 kV on contact conforming to EN/IEC 61000-4-2 8 kV in air conforming to EN/IEC 61000-4-2 |
| Resistance to fast transients | 1 kV I/O conforming to EN/IEC 61000-4-4 |
| Resistance to magnetic fields | 30 A/m at 50...60 Hz conforming to EN/IEC 61000-4-8 |
| RoHS (date code: YYWW) | Compliant - since 1415 - Schneider Electric declaration of conformity |
| Sampling duration | 100 ms for analogue input temperature probe 100 ms for analogue input thermocouple 100 ms for analogue input voltage/current 10 ms for analogue input voltage/current |
| Shock resistance | 15 gn during 11 ms |
| Standards | EN/IEC 61131-2 EN/IEC 61010-2-201 |
| Storage altitude | 0...3000 m |
| Supply voltage limits | 20.4...28.8 V |
| Surge withstand | 1 kV for input with common mode protection conforming to EN/IEC 61000-4-5 0.5 kV for power supply with differential mode protection conforming to EN/IEC 61000-4-5 1 kV for power supply with common mode protection conforming to EN/IEC 61000-4-5 |
| Sustainable offer status | Green Premium product |
| Temperature drift | +/- 0.01 %FS/°C |
| Type of cable | <= 30 m twisted shielded pairs cable for input circuit |
| Vibration resistance | 3 gn at 8.4...150 Hz with DIN rail mounting support 3.5 mm at 5...8.4 Hz with DIN rail mounting support |
| Width | 23.6 mm |
