| Ambient air temperature for operation | -10...50 °C vertical installation -10...55 °C horizontal installation |
| Ambient air temperature for storage | -25...70 °C |
| Communication port protocol | Profibus DP V1 Profibus DP V0 |
| Current consumption | 290 mA at 5 V DC for communication bus |
| Depth | 90 mm |
| Electrical connection | SUB-D 9 - 1 female connector for connecting Profibus Screw connector - terminal for connecting the functional ground |
| Height | 90 mm |
| Insulation | Between bus and internal logic at 1000 V DC |
| Integrated connection type | Female SUB-D 9 Profibus DP |
| Electromagnetic emission | Radiated emissions - test level: 24 dB?V/m QP at 156...165 MHz conforming to Marine specification (LR, ABS, DNV, GL) Radiated emissions - test level: 54 dB?V/m QP at 100 MHz...2 GHz conforming to Marine specification (LR, ABS, DNV, GL) Radiated emissions |
| IP degree of protection | IP20 with protective cover in place |
| Local signalling | 1 LED green/red for communication 1 LED green/yellow for power supply |
| Marking | CE |
| Mounting support | Plate or panel with fixing kit Top hat type TH35-7.5 rail conforming to IEC 60715 Top hat type TH35-15 rail conforming to IEC 60715 |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Power dissipation in W | 1.5 W |
| Product certifications | C-Tick CULus |
| Product compatibility | Modicon M251 logic controller Modicon M241 logic controller |

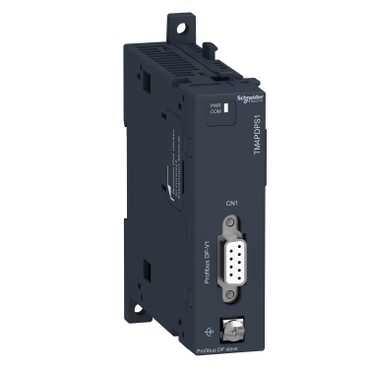

| Product or component type | Profibus DP communication module |
| Product weight | 0.1 kg |
| Range compatibility | Modicon M241 Modicon M251 |
| Relative humidity | 10...95 % without condensation in storage 10...95 % without condensation in operation |
| Resistance to conducted disturbances, induced by radio frequency fields | 10 V (spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)) conforming to Marine specification (LR, ABS, DNV, GL) 3 V (0.1...80 MHz) conforming to Marine specification (LR, ABS, DNV, GL) 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6 |
| Resistance to electromagnetic fields | 1 V/m (2...2.7 GHz) conforming to EN/IEC 61000-4-3 3 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3 10 V/m (80 MHz...1 GHz) conforming to EN/IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV (on contact) conforming to Marine specification (LR, ABS, DNV, GL) 8 kV (in air) conforming to Marine specification (LR, ABS, DNV, GL) 4 kV (on contact) conforming to EN/IEC 61000-4-2 8 kV (in air) conforming to EN/IEC 61000-4-2 |
| Resistance to fast transients | 1 kV (serial link) conforming to EN/IEC 61000-4-4 1 kV (Ethernet line) conforming to EN/IEC 61000-4-4 1.5 kV (I/O) conforming to EN/IEC 61000-4-4 2 kV (relay output) conforming to EN/IEC 61000-4-4 2 kV (power lines) conforming to EN/IEC 61000-4-4 |
| Shock resistance | 15 gn during 11 ms |
| Standards | EN/IEC 61131-2 UL 508 EIA-485 |
| Storage altitude | 0...3000 m |
| Surge withstand | 0.5 kV (I/O) with differential mode protection conforming to EN/IEC 61000-4-5 1 kV (relay output) with differential mode protection conforming to EN/IEC 61000-4-5 1 kV (power lines (AC)) with differential mode protection conforming to EN/IEC 61000-4-5 0.5 |
| Transmission rate | 3...12 Mbit/s for bus length of 100 m 9.6...93.75 kbit/s for bus length of 1200 m 187.5 kbit/s for bus length of 1000 m 500 kbit/s for bus length of 400 m 1.5 Mbit/s for bus length of 200 m |
| Vibration resistance | 0.7 gn at 13.2...100 Hz on panel mounting 1 mm at 5...13.2 Hz on panel mounting 3 gn at 8.7...150 Hz on symmetrical rail 1 mm at 5...13.2 Hz on symmetrical rail |
| Width | 25 mm |
