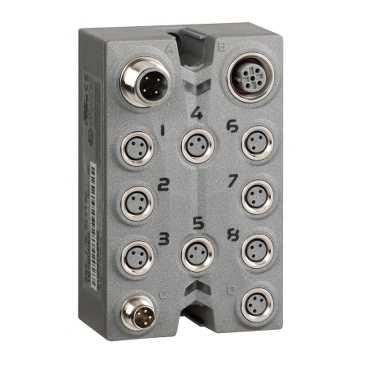

Modicon TM7 I/O udvidelsesmodul, 8 DO, 24VDC, M8 stik
| Varenr: | TM7BDO8TAB |
| El nr: | 7586036119 |
| EAN13 nr: | 3595864093116 |
| Pakning: | 1stk |
 |
| [Ue] rated operational voltage | 24 V DC |
| Ambient air temperature for operation | -10...60 °C |
| Ambient air temperature for storage | -25...85 °C |
| Antal digitale udgange | 8 output(s) at <= 2 A with transistor protection |
| Bustype | TM7 bus |
| Digital udgangspænding | 24 V |
| Digital udgangspænding | DC |
| Driftshøjde | 0...2000 m |
| Driftsstilling | Any position |
| Electromagnetisk kompatibilitet | Conducted and radiated emissions conforming to CISPR 11 Conducted RF disturbances conforming to EN/IEC 61000-4-6 1.2/50 µs shock waves immunity test (level: 1 kV - shielded links (differential mode)) conforming to EN/IEC 61000-4-5 1.2/50 µs shock waves im |
| Elektrisk tilslutning | 1 hunstik M8 - 3 vejs for actuator 1 hunstik M8 - 4 vejs for power OUT Hanstik M8 - 4 vejs for power IN 1 hunstik M12 - B coding - 4 vejs for bus OUT Hanstik M12 - B coding - 4 vejs for bus IN |
| Fastgørelsesmåde | Med 2 skruer |
| Forureningsgrad | 2 conforming to IEC 60664 |
| Ind- og udgangsantal | 8 |
| Ind- og udgangsantal på fordelingsboks | 8 O |
| IP kapslingsklasse | IP67 conforming to IEC 61131-2 |
| Kasplingsmateriale | Kunststof |
| Lokal indikering | 2 LED for sensor power supply diagnostics 2 LED for bus diagnostic |
| Mærkning | CE |
| Opbevaringshøjde | 0...3000 m |
| Productcertificeringer | C-Tick CURus GOST-R ATEX II 3g EEx nA II T5 |
| Produkttype | Discrete I/O expansion block |
| Range of product | Modicon TM7 |
| Reguleringskompatibilitet | Modicon LMC058 Modicon M258 |
| Relativ fugtighed | 5...95 % without condensation or dripping water |
| RoHS EUR conformity date(YYWW) | 1039 |
| RoHS EUR status | Compliant |
| Shockmodstand | 30 gn for 11 ms conforming to IEC 60721-3-5 Class 5M3 |
| Standarder | IEC 61131-2 |
| Strømforsyning til føler | 24 V, 500 mA for all channels with overload, short-circuit and reverse polarity protection |
| Vibrationsmodstand | 4 gn constant acceleration (f = 200...500 Hz) conforming to IEC 60721-3-5 Class 5M3 2 gn constant acceleration (f = 8...200 Hz) conforming to IEC 60721-3-5 Class 5M3 7.5 mm constant amplitude (f = 2...8 Hz) conforming to IEC 60721-3-5 Class 5M3 |
| Vægt | 0.185 kg |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
