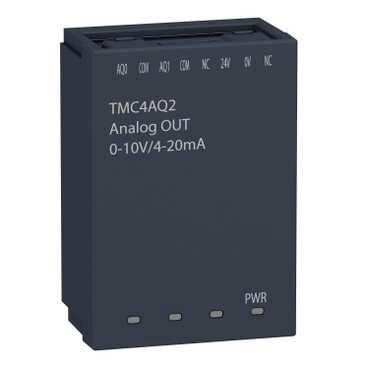

TMC4 Indstikskort Analog, skrueklemmer, Analogudgange 2 (0-10V/0-20mA/4-20mA), 16 Bits
| Varenr: | TMC4AQ2 |
| El nr: | 7586048440 |
| EAN13 nr: | 3606480649172 |
| Pakning: | 1stk |
 |
| Absolute accuracy error | +/- 0.2 % of full scale at 25 °C |
| Analogue output number | 2 |
| Analogue output resolution | 16 bits |
| Analogue output type | Voltage (0...10 V) Current (4...20 mA) |
| Cable length | <= 30 m twisted shielded pairs cable (input) |
| Conversion time | 10 ms + 1 controller cycle time |
| Cross talk | 80 dB |
| Depth | 21 mm |
| Electrical connection | 1 spring terminal block (pitch 3.81 mm) 1.5 mm² 1 for outputs and supply |
| Height | 50 mm |
| Immunity to microbreaks | 10 ms |
| Insulation | Non-insulated between outputs Between output and internal logic 500 V DC |
| Load impedance ohmic | >= 2 kOhm (voltage) <= 500 Ohm (current) |
| Load type | Resistive |
| Local signalling | 1 LED green PWR |
| LSB value | 2 µA current, output range: 4...20 mA 1 mV voltage, output range: 0...10 V |
| Non-linearity | +/- 0.05 %FS |
| Output ripple | +/- 20 mV |
| Product compatibility | Modicon M241C |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |
| Product or component type | Analogue output cartridge |
| Product weight | 0.055 kg |
| Range of product | Modicon M241 |
| REACh | Reference not containing SVHC above the threshold |
| Repeat accuracy | +/- 0.5 %FS |
| RoHS (date code: YYWW) | Compliant - since 1350 - Schneider Electric declaration of conformity |
| Stabilisation time | 10 ms |
| Supply voltage limits | 20.4...28.8 V |
| Sustainable offer status | Green Premium product |
| Temperature drift | +/- 0.006 %FS/°C |
| Type of cable | Twisted shielded pairs cable |
| Width | 34 mm |
Yderliger oplysninger:
