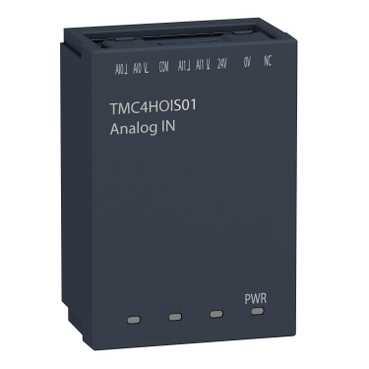

TMC4-Indstikskort Analog,TM241,kran app
| Varenr: | TMC4HOIS01 |
| El nr: | 7586048453 |
| EAN13 nr: | 3606480649189 |
| Pakning: | 1stk |
 |
| Absolute accuracy error | +/- 0.2 % of full scale at 25 °C |
| Analogue input number | 2 |
| Analogue input resolution | 16 bits |
| Analogue input type | Voltage, input range: 0...10 V Current, input range: 0...20 mA Current, input range: 4...20 mA |
| Cable length | <= 30 m twisted shielded pairs cable (input) |
| Cross talk | 80 dB |
| Depth | 21 mm |
| Electrical connection | 1 spring terminal block (pitch 3.81 mm) 1.5 mm² 1 for inputs and supply |
| Height | 50 mm |
| Immunity to microbreaks | 10 ms |
| Input impedance | >= 1 MOhm (voltage) <= 250 Ohm (current) |
| Insulation | Non-insulated between inputs Between input and internal logic 500 V DC |
| Local signalling | 1 LED green PWR |
| LSB value | 2 µA (current), output range: 4...20 mA 2 µA (current), output range: 0...20 mA 1 mV (voltage), output range: 0...10 V |
| Non-linearity | +/- 0.05 %FS |
| Permissible continuous overload | 30 V (voltage) 40 mA (current) |
| Product compatibility | Modicon M241C |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |
| Product or component type | Analogue input cartridge |
| Product specific application | Hoisting applications |
| Product weight | 0.055 kg |
| Range of product | Modicon M241 |
| REACh | Reference not containing SVHC above the threshold |
| Repeat accuracy | +/- 0.2 %FS |
| RoHS (date code: YYWW) | Compliant - since 1350 - Schneider Electric declaration of conformity |
| Sampling duration | 10 ms |
| Supply voltage limits | 20.4...28.8 V |
| Sustainable offer status | Green Premium product |
| Temperature drift | +/- 0.006 %FS/°C |
| Type of cable | Twisted shielded pairs cable |
| Width | 34 mm |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
