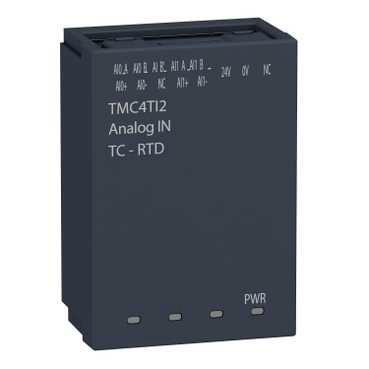

TMC2-Indstikskort til TM221, 2 x temperaturindgange, Sensor typer: K,J,R,S,B,E,T,N,C,PT100,PT1000,NI100,NI1000) Skrueklemmer
| Varenr: | TMC4TI2 |
| El nr: | 7586048479 |
| EAN13 nr: | 3606480649202 |
| Pakning: | 1stk |
 |
| Absolute accuracy error | +/- 0.5 % of full scale (Pt 100/Pt 1000, Ni 100/ Ni 1000) +/- 0.1 % of full scale for thermocouple B, input range: 400...1280 °C +/- 0.2 % of full scale for thermocouple B, input range: 250...400 °C +/- 0.2 % of full scale for thermocouple N +/- 0.2 % of |
| Analogue input number | 2 |
| Analogue input resolution | 14 bits |
| Analogue input type | Temperature probe, input range: - 200...600 °C (Pt 1000) Temperature probe, input range: - 200...850 °C (Pt 100) Temperature probe, input range: - 60...180 °C (Ni 100/Ni 1000) Thermocouple, input range: - 200...800 °C for thermocouple E Thermocouple, inpu |
| Cable length | <= 30 m twisted shielded pairs cable (input) |
| Cross talk | 80 dB |
| Depth | 21 mm |
| Electrical connection | 1 spring terminal block (pitch 3.81 mm) 1.5 mm² 1 for outputs and supply |
| Height | 50 mm |
| Immunity to microbreaks | 10 ms |
| Input impedance | >= 1 MOhm |
| Insulation | Non-insulated between inputs Between input and internal logic 500 V DC |
| Local signalling | 1 LED green PWR |
| LSB value | 0.1 °C |
| Non-linearity | +/- 0.05 %FS |
| Permissible continuous overload | 6 V |
| Product compatibility | Modicon M241C |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |
| Product or component type | Analogue input cartridge |
| Product weight | 0.055 kg |
| Range of product | Modicon M241 |
| REACh | Reference not containing SVHC above the threshold |
| Repeat accuracy | +/- 0.1 %FS |
| RoHS (date code: YYWW) | Compliant - since 1350 - Schneider Electric declaration of conformity |
| Sampling duration | 100 ms |
| Supply voltage limits | 20.4...28.8 V |
| Sustainable offer status | Green Premium product |
| Temperature drift | +/- 0.008 %FS/°C |
| Type of cable | Twisted shielded pairs cable |
| Width | 34 mm |
Yderliger oplysninger:
